Front

W�Q[:

Caution: Replace the left and right pads at the same time.

1. Jack up the front of the vehicle and support it with safety stands.
2. Remove the wheels.

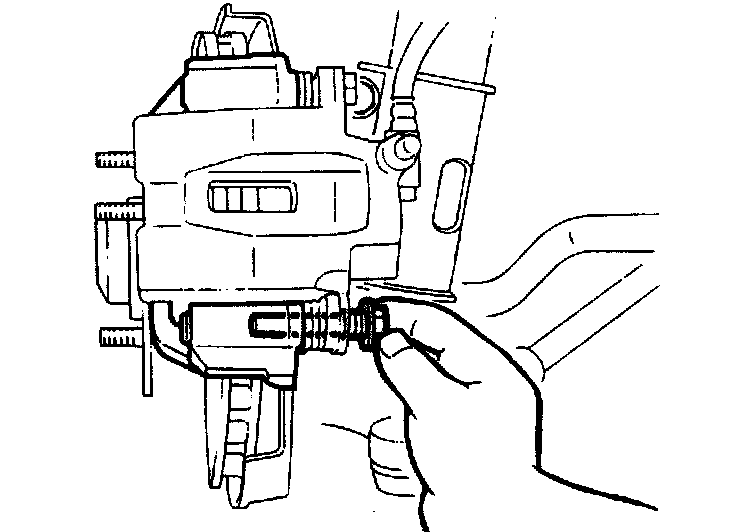

3. Remove the lower look pin bolt then lift the caliper and support it.
4. Remove the pads.






5. Push the piston inward using the SST.
6. Install the new pads in the mounting support.
7. Lower the caliper assembly onto the mounting support.

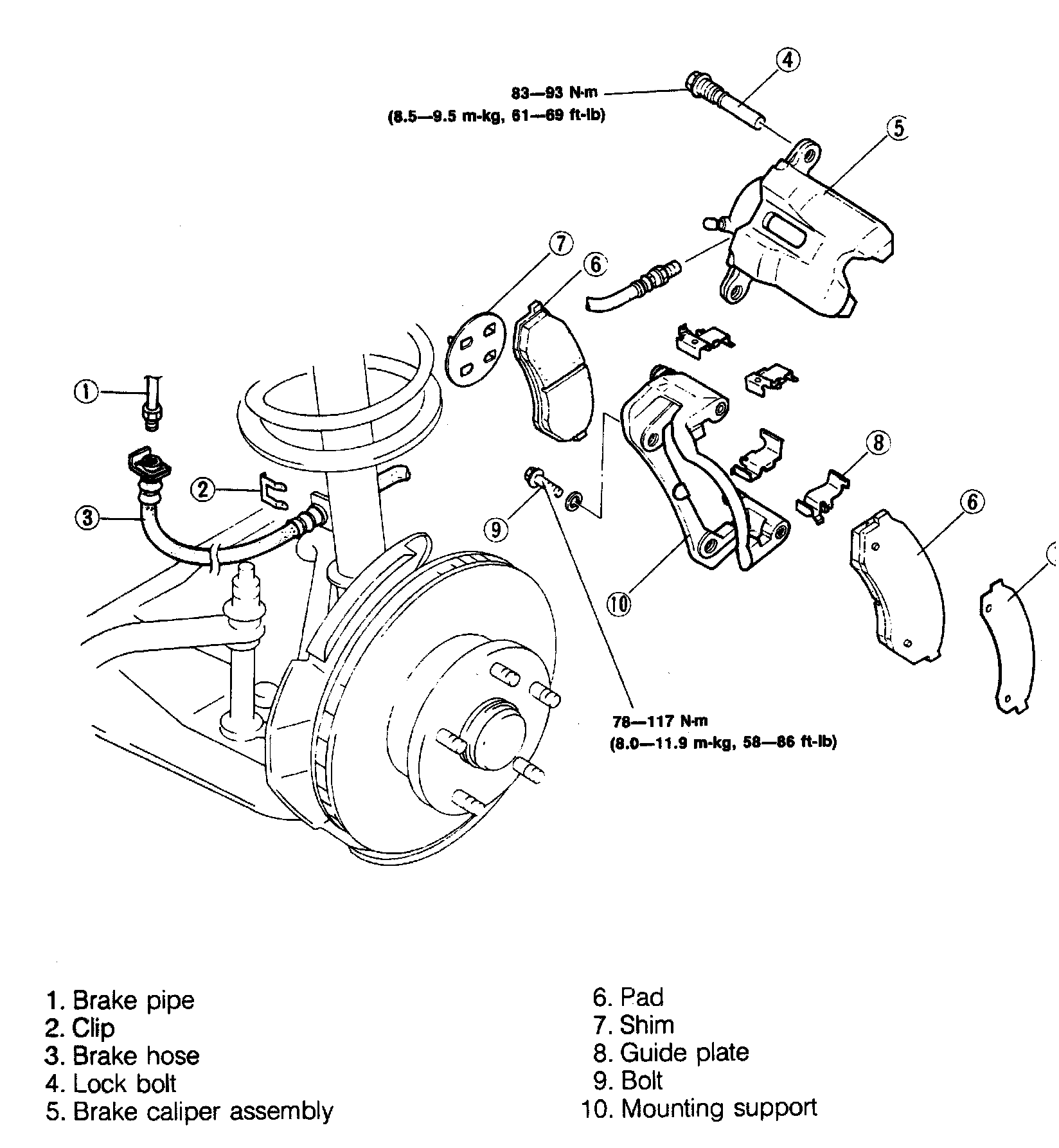

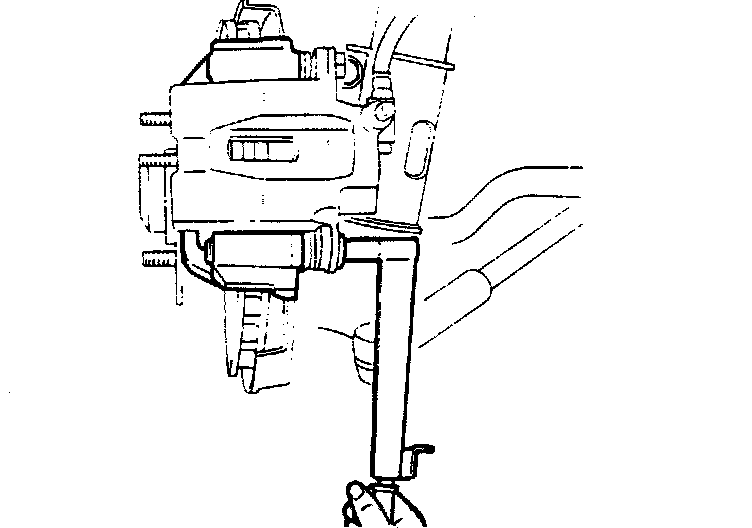

8. Tighten the lock bolt to the specified torque 78-117 N.m (8.0-11.9 m.kg, 58-86 ft.lb).
9. Mount the wheels.

Caution: Apply the brakes 2 or 3 times. Rotate the wheels and check the brakes do not drag.

10. Lower the vehicle.
