Fluid - M/T: Service and Repair

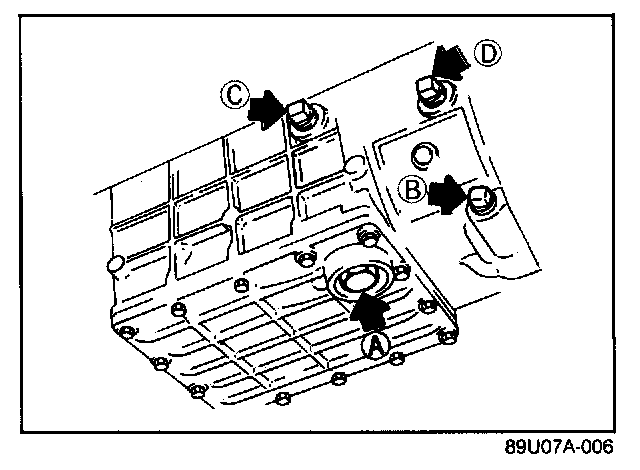

1. Remove the two drain plugs ((A) and (B)) and two plugs ((C) and (D)), and drain the oil into a suitable container.
2. Wipe the magnetic drain plug clean.
3. Apply sealant to the threads of the drain, filler, and check plugs.
4. After the oil has drained, install the drain plugs.

Tightening torque:
A: 39 - 59 N.m (4.0 - 6.0 m-kg, 29 - 43 ft-lb)
B: 25 - 39 N.m (2.5 - 4.0 m-kg, 18 - 29 ft-lb)

5. Add oil from (C) filler plug port until the level reaches the bottom of (D) check plug hole.
6. Install the plugs.

Tightening torque: 25 - 39 N.m (2.5 - 4.0 m-kg, 18 - 29 ft-lb)
