Mazda
>>
1988
>>
MX-6 L4-2184cc 2.2L SOHC Turbo F2
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Non Turbo
>>
Manual Transmission
Manual Transmission

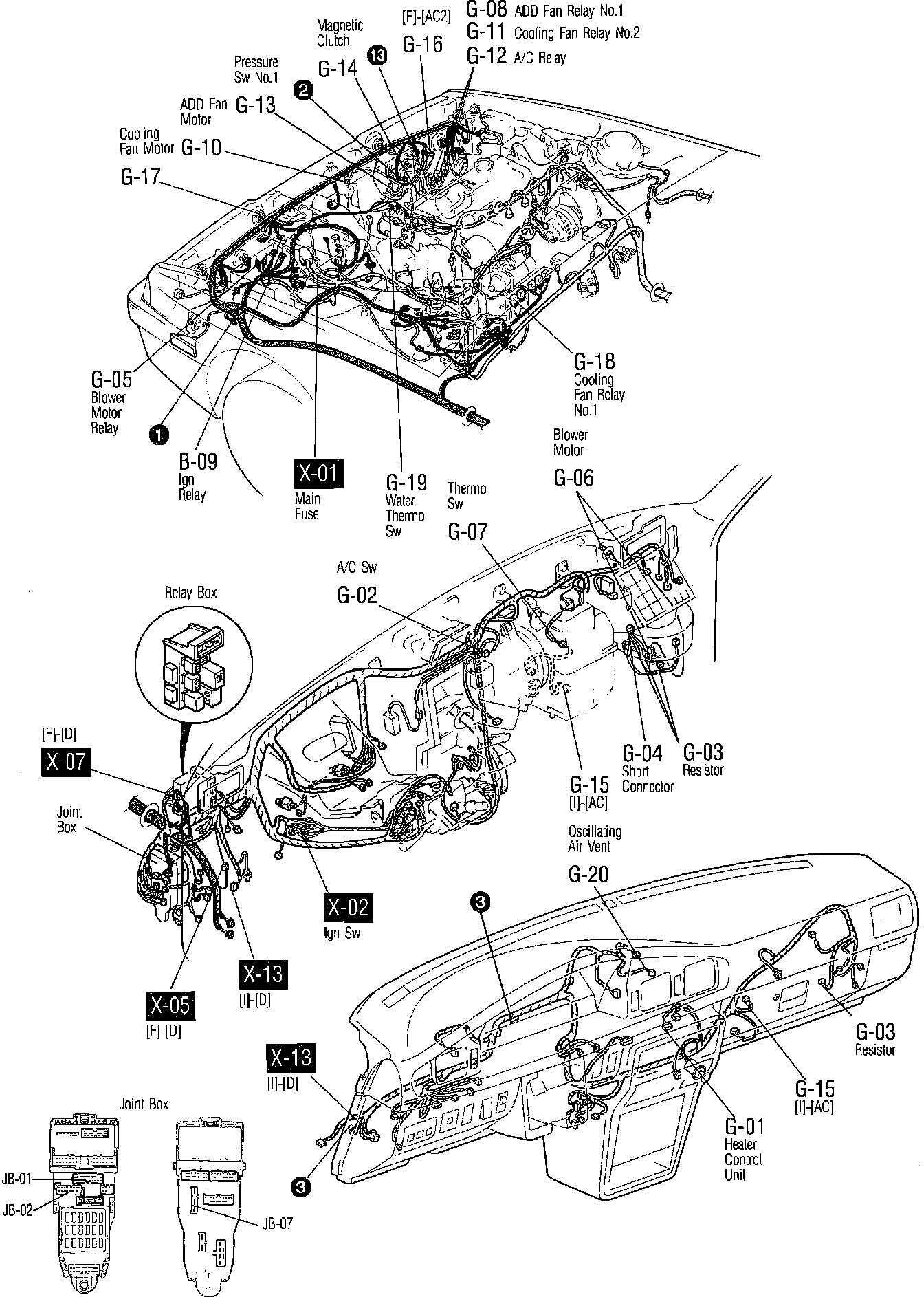

Heater, Air Conditioner and Cooling Fan System (Non Turbo M/T):
