Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1989
>>
323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

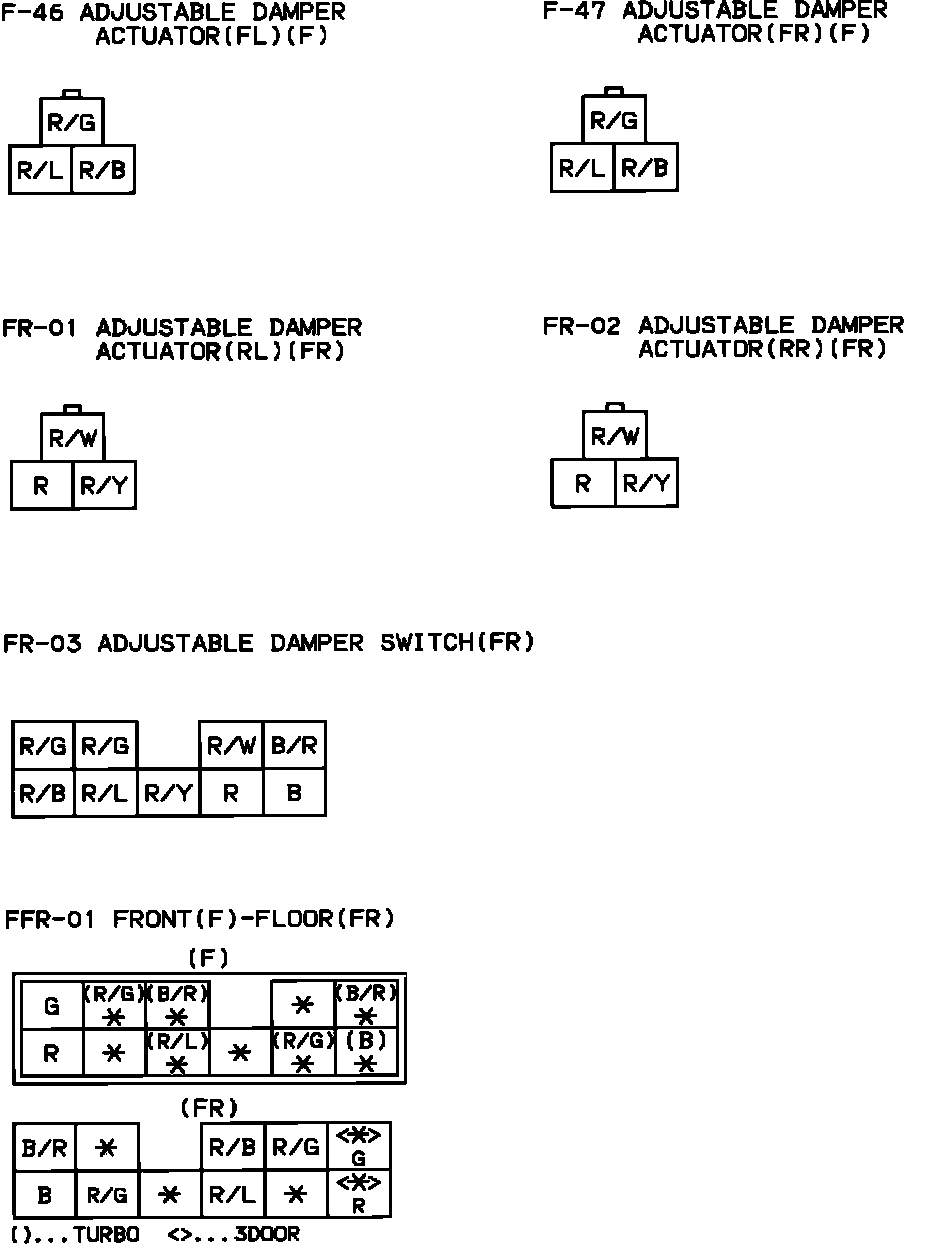

Damping Control Actuator
Damping Control Actuator
Connector Identification:
