Home
>>
Mazda
>>
1989
>>
323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Fuel System
Fuel System

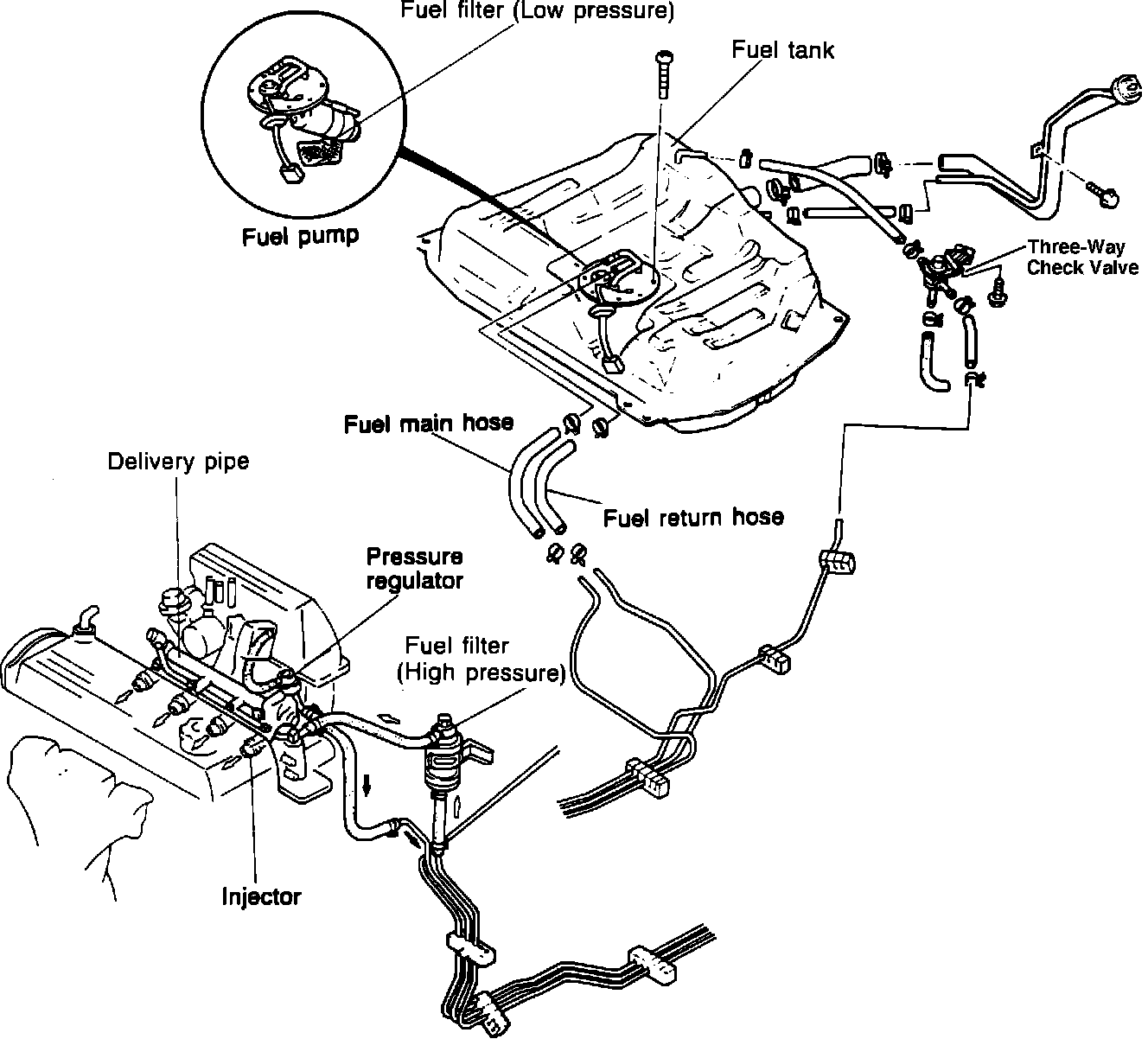

Component Locations:
