Control Assembly: Service and Repair

Removal




1. Remove the undercover and glove box.
2. Disconnect the REC-FRESH selector door actuator connector.

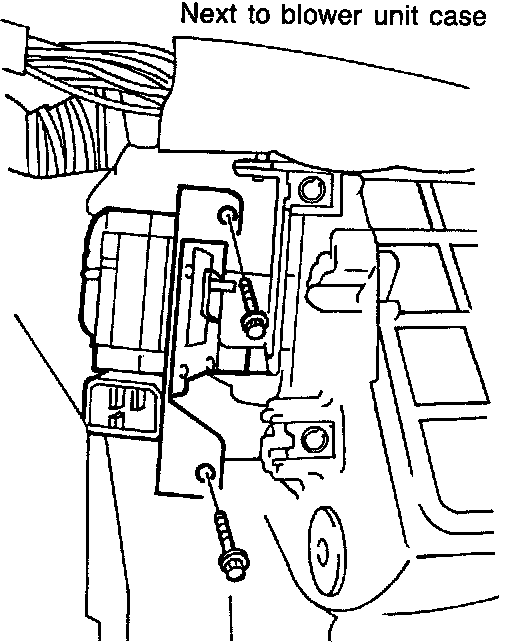

3. Remove the screws and the REC-FRESH selector door actuator.

Installation
Install in the reverse order of removal.
