Fluid - M/T: Service and Repair

Replacement




1. Park the vehicle on level ground.

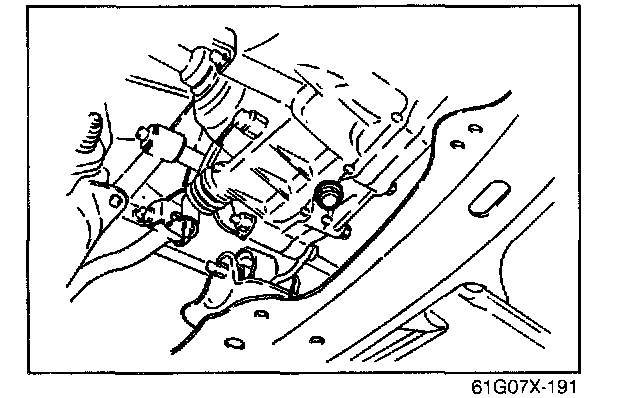

2. Remove the speedometer driven gear.
3. Remove the drain plug, and drain the oil.

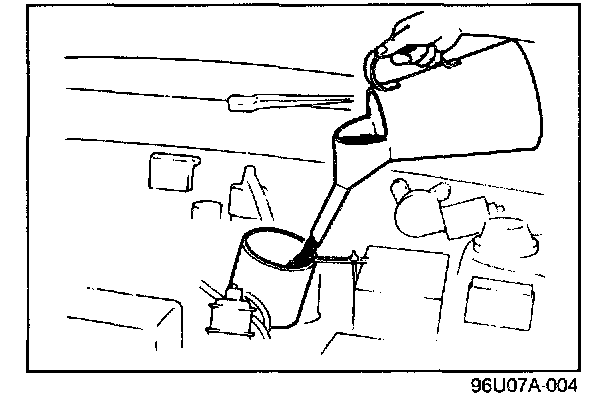

4. Replace the drain plug, and add the necessary amount of the specified oil through the speedometer gear case hole.

Specified oil Type
All season
ATF: DEXRON II
Above 0 °F:
API: GL-4 or GL-5
SAE 80W - 90 or SAE 90

Capacity:
Non-Turbo: 3.35 liters (3.5 US qt, 2.9 Imp qt)
