Evaporator Temperature Sensor / Switch: Service and Repair

Removal

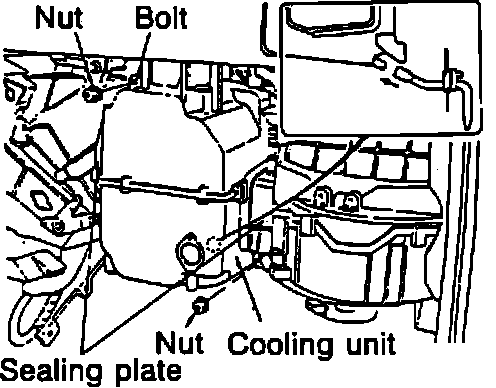

Fig. 4 Removing Sealing Plates From Cooling Unit:

Fig. 5 Exploded View Of Cooling Unit:

1. Remove the cooling unit.
2. Disassemble the cooling unit, and remove the thermoswitch.


Installation
- Install in the reverse order Of removal.
