Blower Motor Resistor: Service and Repair

Resistor Assembly Removal

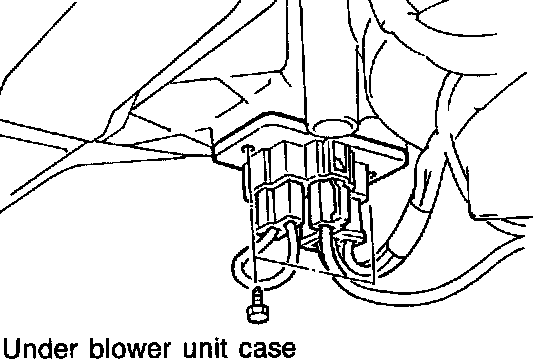

1. Remove the undercover and glove box.
2. Disconnect the resistor assembly connectors.
3. Remove the screws and the resistor assembly.


Inspection

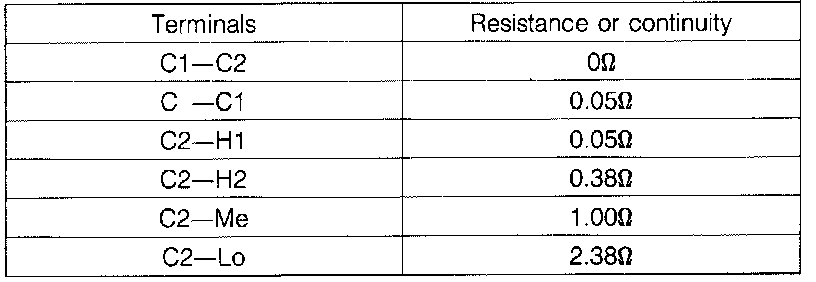

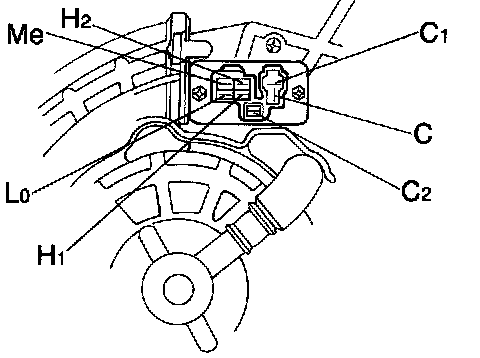

Check the resistance or continuity between terminals with an ohmmeter.


Installation
Install in the reverse order of removal.
