Compressor Clutch Relay: Testing and Inspection

Inspection of A/C Relay

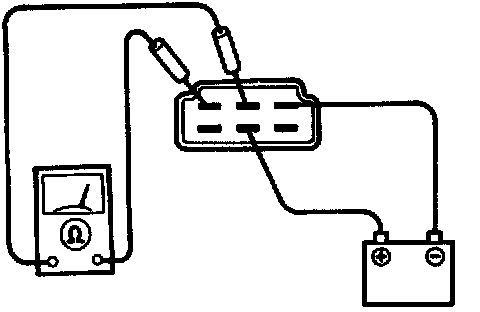

1. Connect the A/C relay, battery, and an ohmmeter as shown in the figure.
2. First check that there is continuity, then disconnect the battery and check that there is no continuity.
3. If the continuity is not specified, replace the relay.
