Control Module: Testing and Inspection

EC-AT Inspection

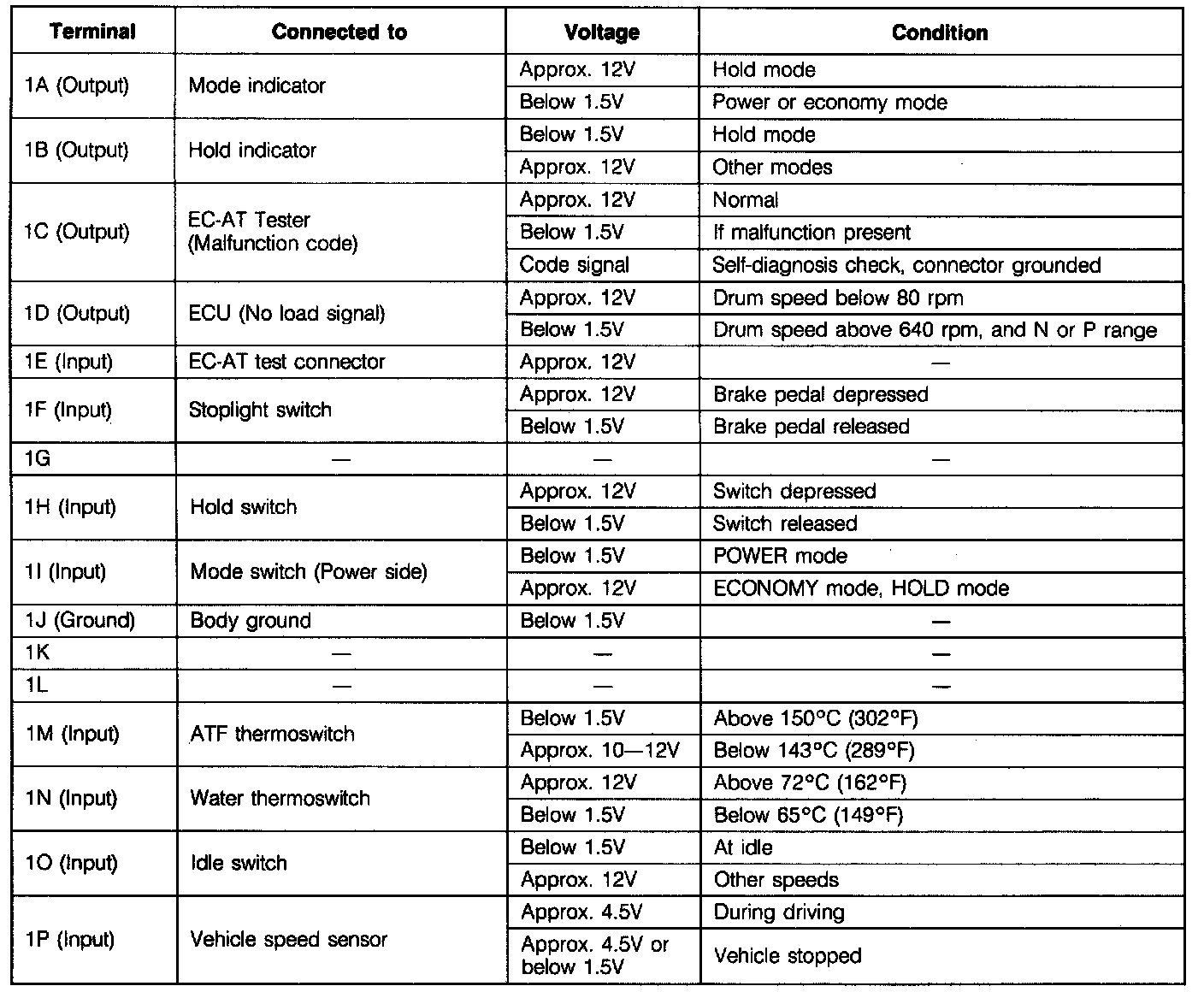

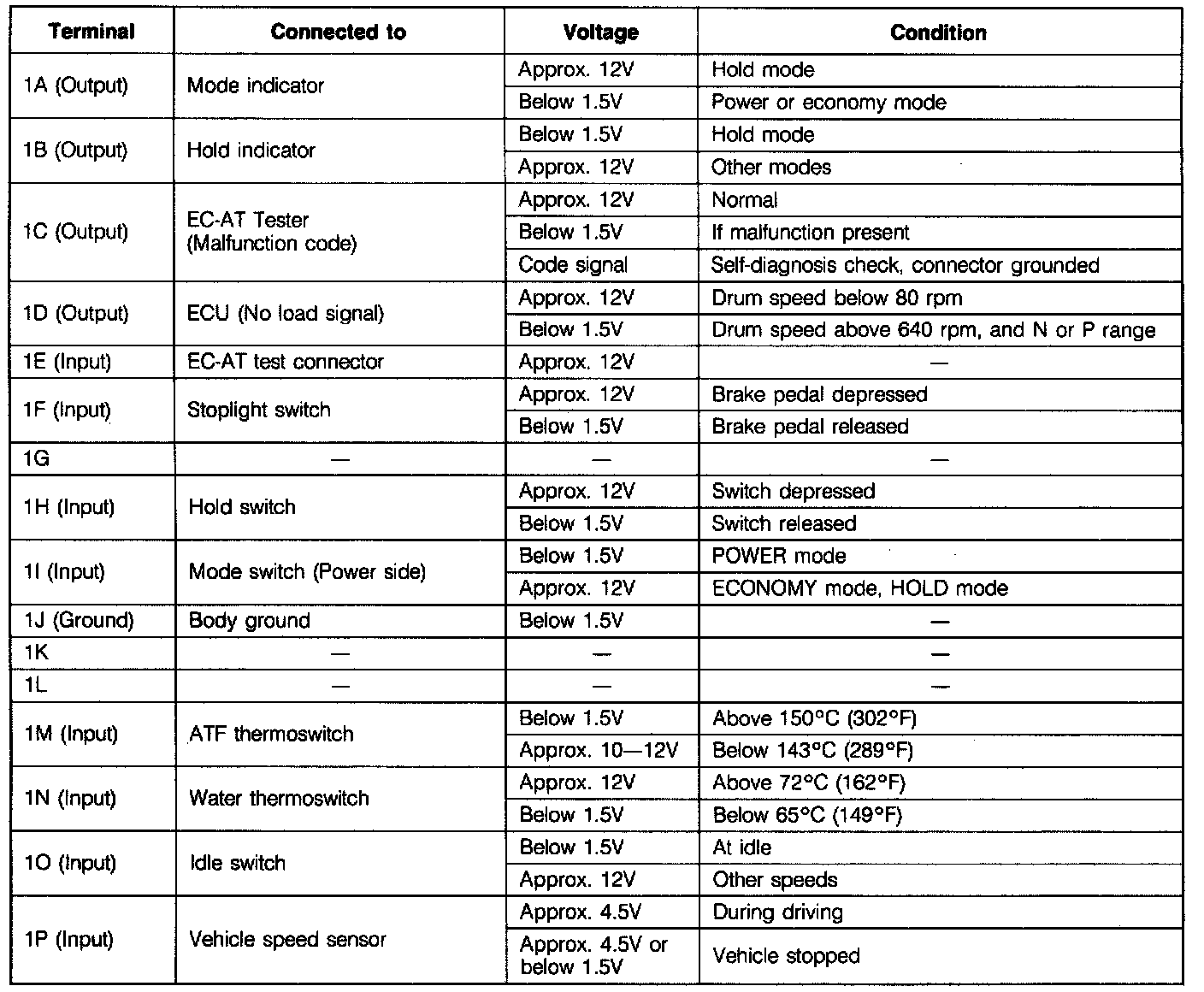

Terminal Voltage Chart:

1. Turn the ignition switch ON, and check the EC-AT control unit terminal voltage, referring to the Terminal Voltage Chart.
2. If not correct, check or replace the component(s), wiring, and/or EC-AT control unit.
