Window Regulator: Service and Repair

WINDOW REGULATOR, GLASS, AND GUIDE
COMPONENTS

Caution:
- Obtain the code number and deactivate the audio anti-theft system before disconnecting the battery.
Removal / Installation
1. Disconnect the negative battery cable.

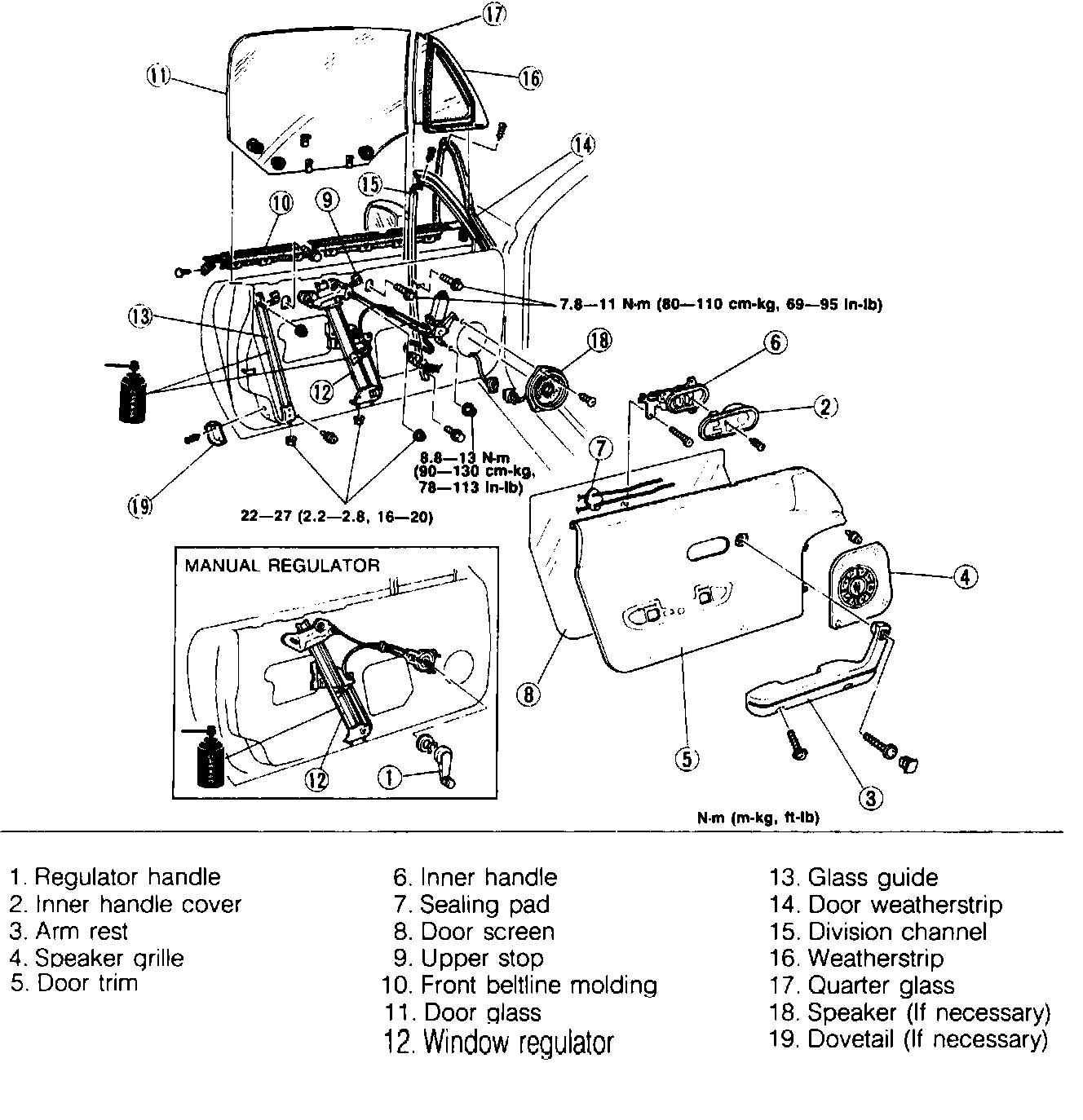

2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.

Caution:
- Remove the door screen carefully so that it may be reused.

Note:
Raise the door glass about 19O mm (1.5 in) from fully-open position.











Removal Note: Regulator handle

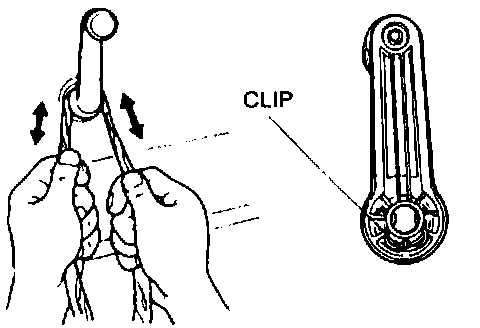

Remove the regulator handle clip with a rag, as shown.






Installation Note: Regulator handle

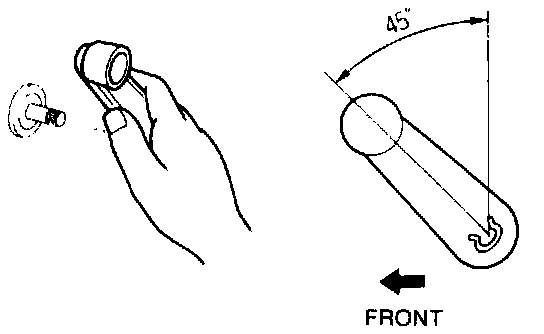

Install the regulator handle as shown.

Note: With door glass at fully-closed position.

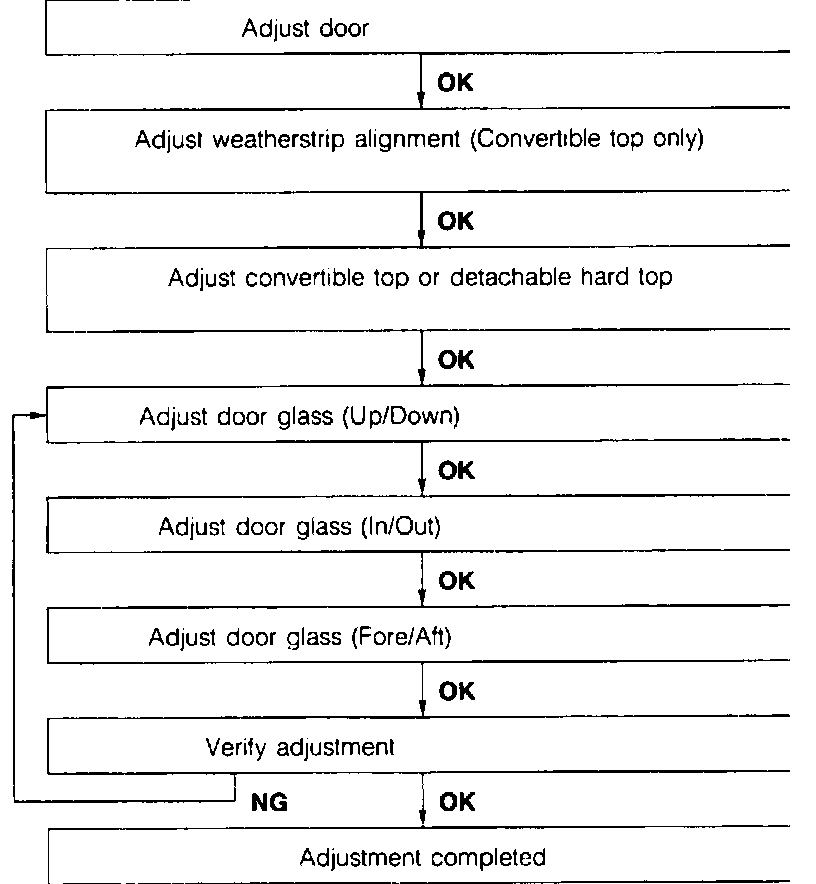

Adjustment
Door glass

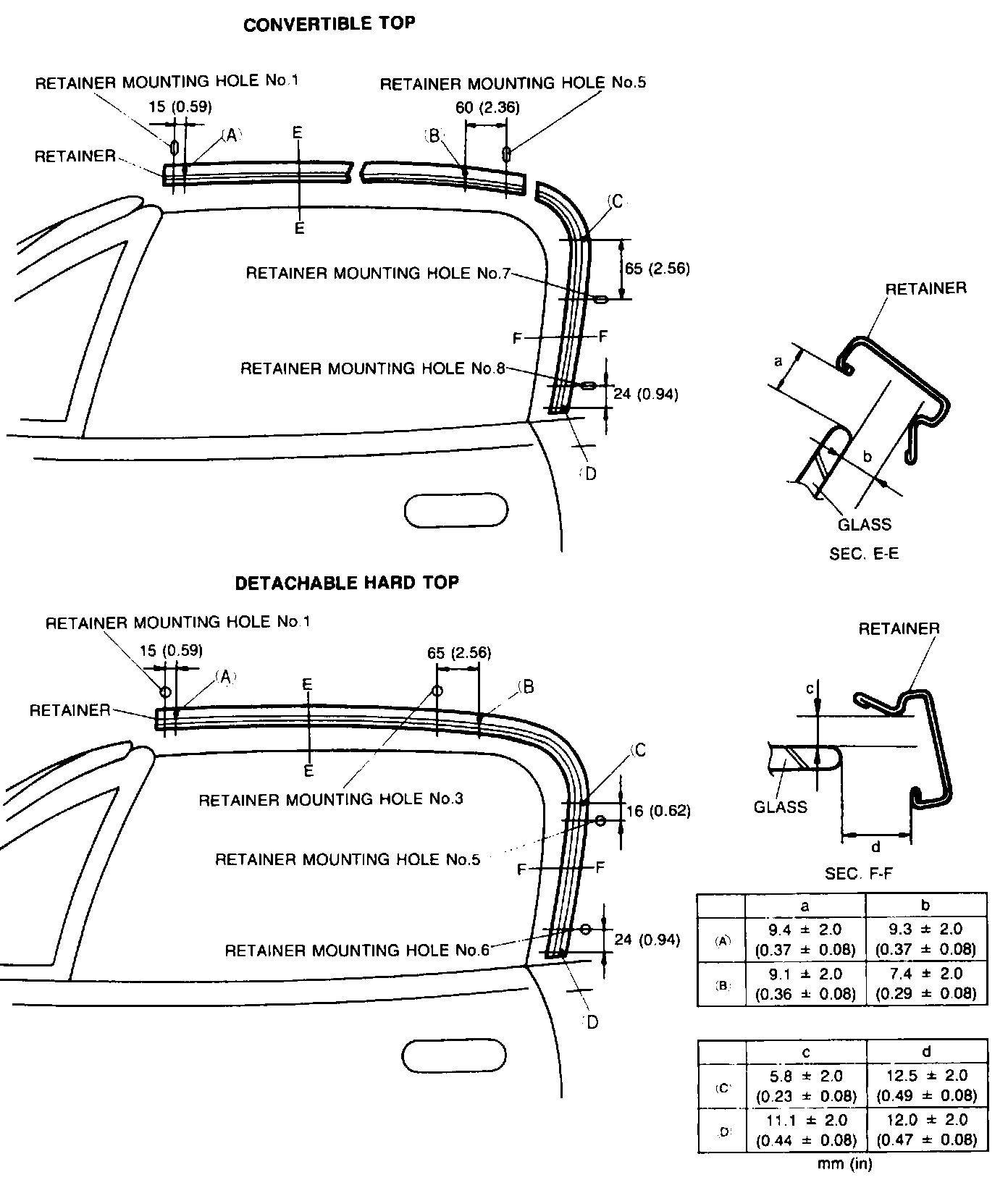

Adjustment of the door glass (convertible top and detachable hard top) is made as follows:

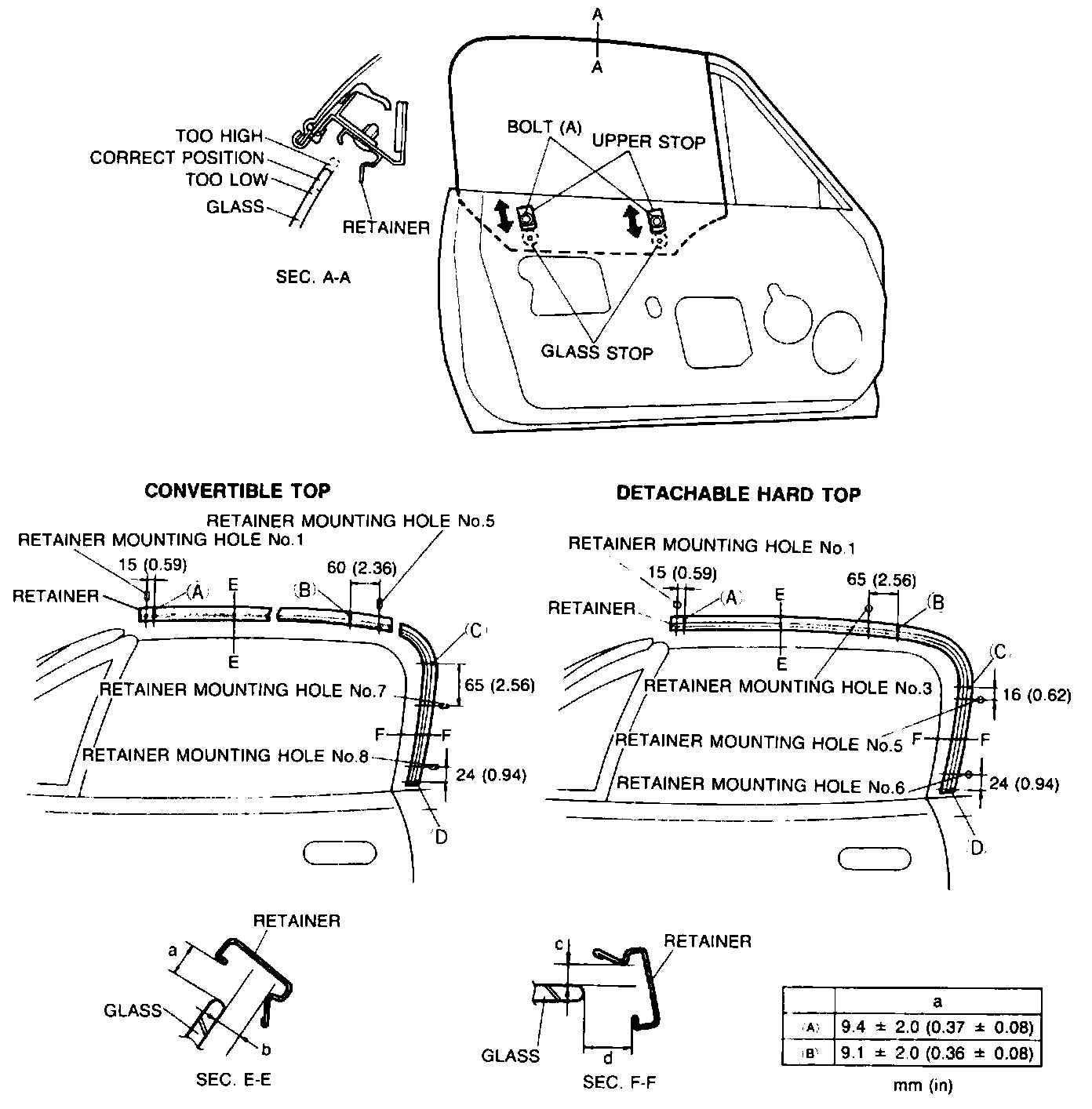

1. Vertical adjustment of door glass
Adjustment procedure
Remove the weatherstrip, and check alignment with the door glass in the fully-closed position.
(1) Loosen upper stop installation bolts (A).
(2) Adjust by moving the upper stop up or down so that the upper edge of the door glass is in the correct position, and then tighten bolts (A).

Note:
- When the door glass is raised, both glass stop must contact the upper stop simultaneously.
- Before an upper stop is moved for adjustment, lower the door glass slightly.

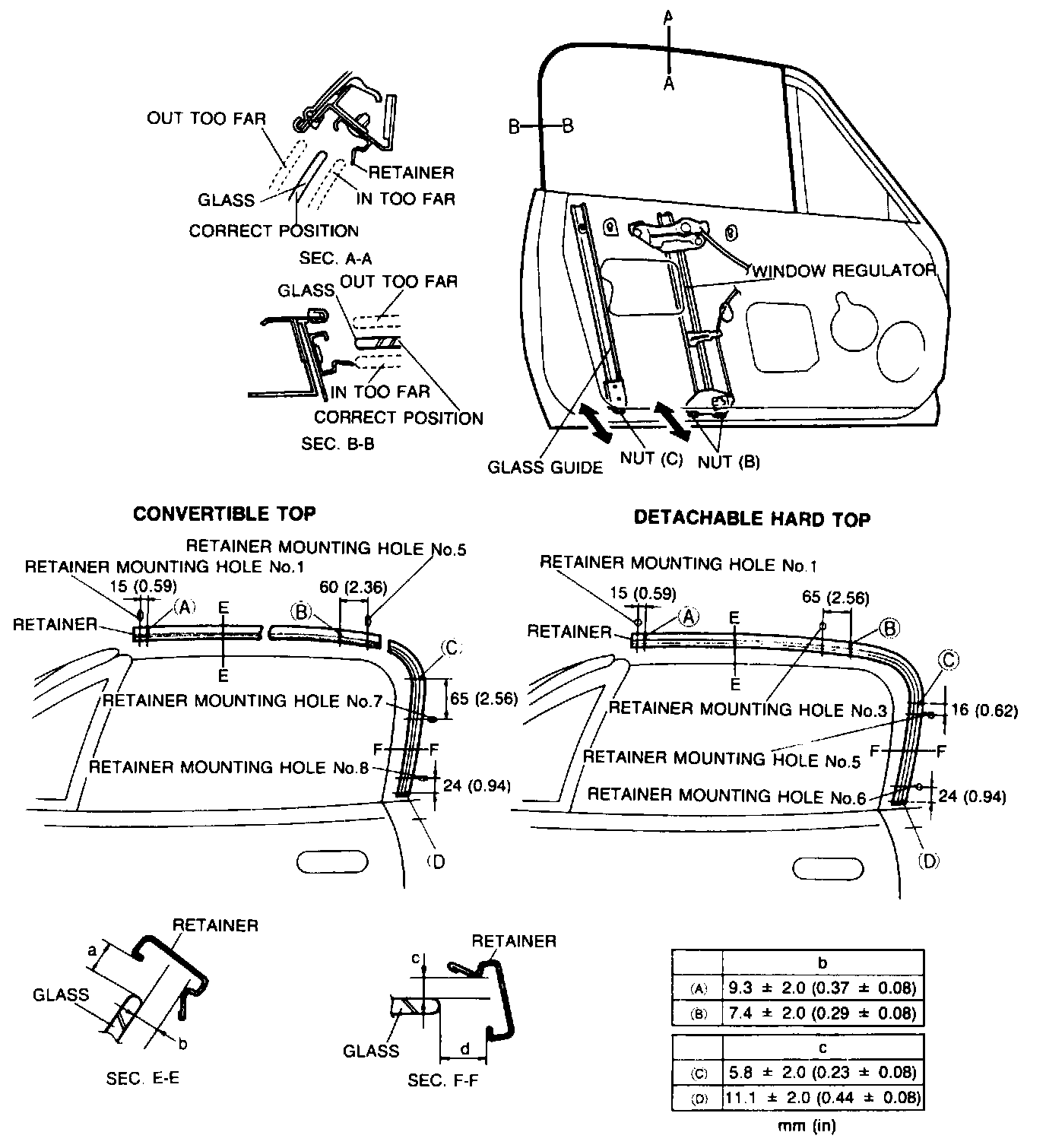

2. Inboard/Outboard adjustment of door glass
Adjustment procedure
Remove the weatherstrip, and check alignment with the door glass in the fully-closed position.
(1) Loosen window regulator installation nuts (B) and glass guide installation nut (C).
(2) Adjust by moving the window regulator and the glass guide inward or outward so that the upper and side edges of the door glass are in the correct position, and then tighten nuts (B) and (C).

Note:
- The window regulator and the glass guide should be tightened in approximately the same p0sition in the slotted adjustment holes.
- The door glass must raise and lower smoothly with the door closed.

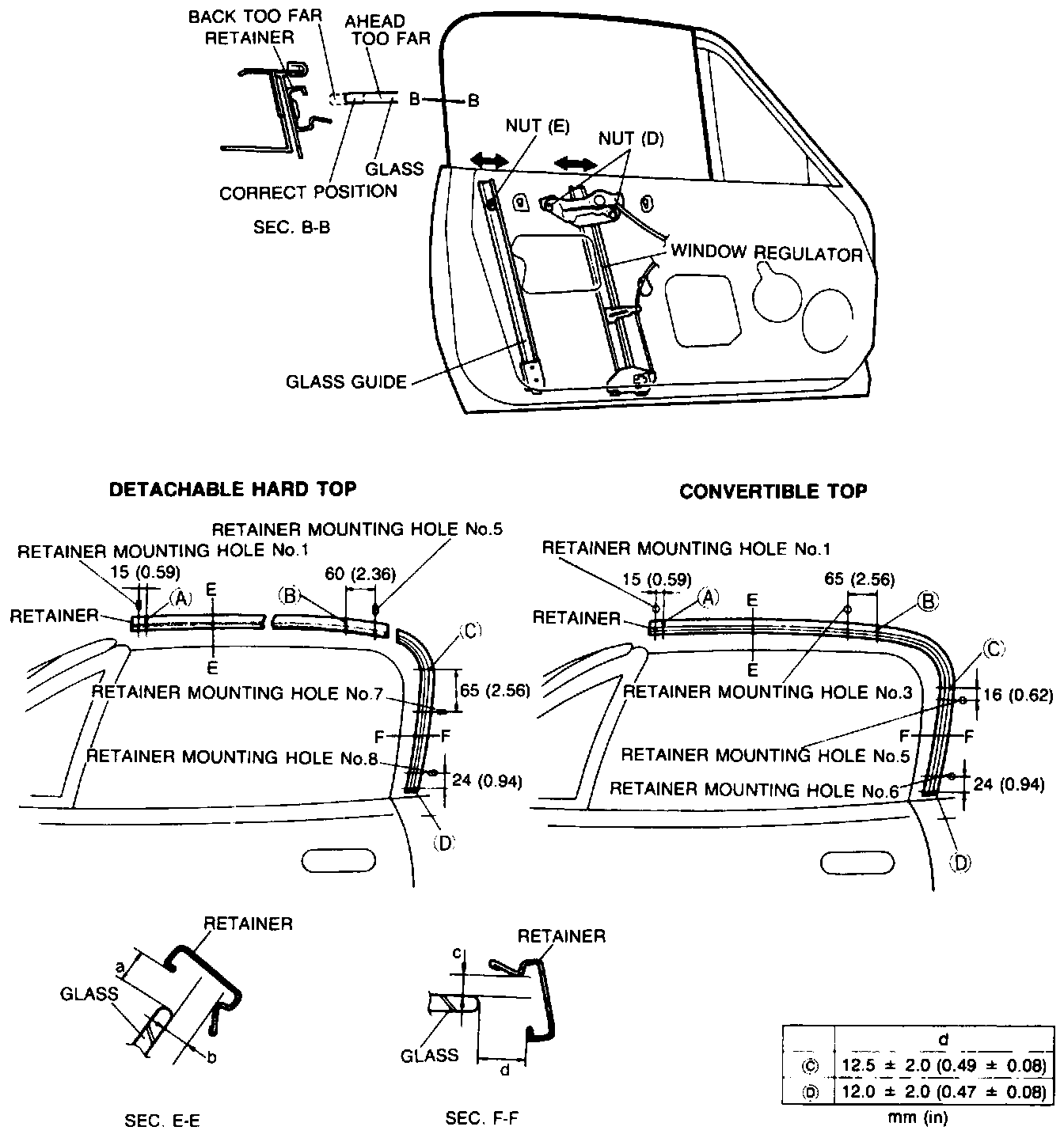

3. Fore and aft adjustment of side edge of door glass
Adjustment procedure
Remove the weatherstrip, and check alignment with the door glass in the fully-closed position.
(1) Loosen window regulator installation nuts (D) and glass guide installation nut (E).
(2) Adjust by moving the window regulator and the glass guide fore or aft equally so that the side edge of the door glass Is in the correct position, and then tighten the nuts (D) and (E).

Note:
- The window regulator and glass guide should be tightened in approximately the same position in the slotted adjustment holes.
- The door glass must raise and lower smoothly with the door closed.






After completion of adjustment, verify the points below
1. Verify the following with the weatherstrip removed.
(1) When the door glass is raised, the glass stop contact the upper stop simultaneously.
(2) The door glass is in the correct position when fully closed.
2. Verify the following with the weatherstrip installed.
(1) The door glass raises and lowers smoothly with the door closed.
(2) Alignment of the weatherstrip is correct (Convertible top only)
