Fuel Injector: Service and Repair

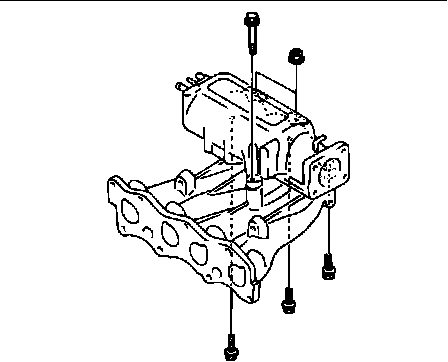

***UPDATED BY TSB#F00193, JANUARY 11, 1993Dynamic Chamber To Manifold (Bolt Locations):
1. Relieve fuel system pressure.
2. Disconnect intake duct from throttle body.
3. Remove intake manifold dynamic chamber and throttle body, as an assembly, from intake manifold.
4. Disconnect vacuum hoses and fuel hoses from fuel rail (fuel delivery pipe).
5. Disconnect electrical connectors from fuel injectors.
6. Remove fuel rail.
7. Remove injectors, O-rings, and insulators.
8. Install in the reverse order. Lubricate injector O-rings with gasoline prior to installation. Tighten dynamic chamber to manifold bolts to specified torque.
14 - 19 ft lbs (19 - 15 Nm)
9. When installation is complete, energize fuel pump (jumper between the "Fp" and "GND" terminals of diagnostic connector and turn ignition "ON") and make sure there are no leaks.
