Wire Control Type
Wire Control Type
Inspection

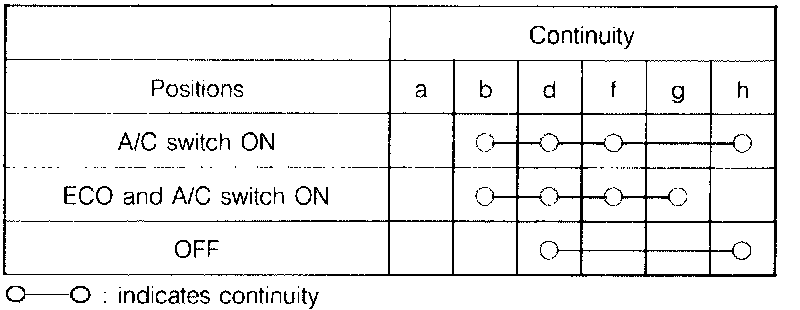

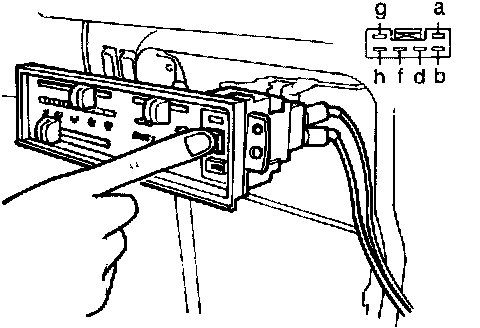

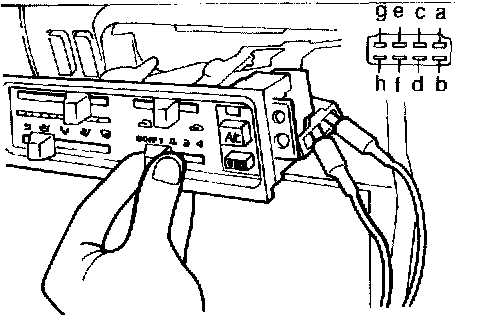

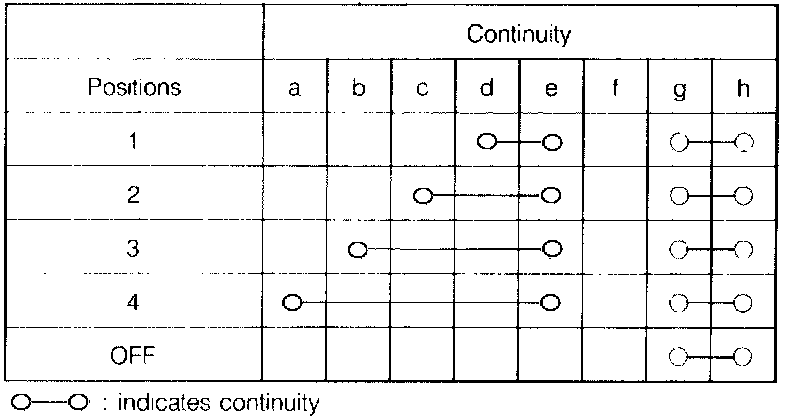

Check for continuity between terminals in following positions with an ohmmeter.
