Control Module, A/T
Control Module, A/T

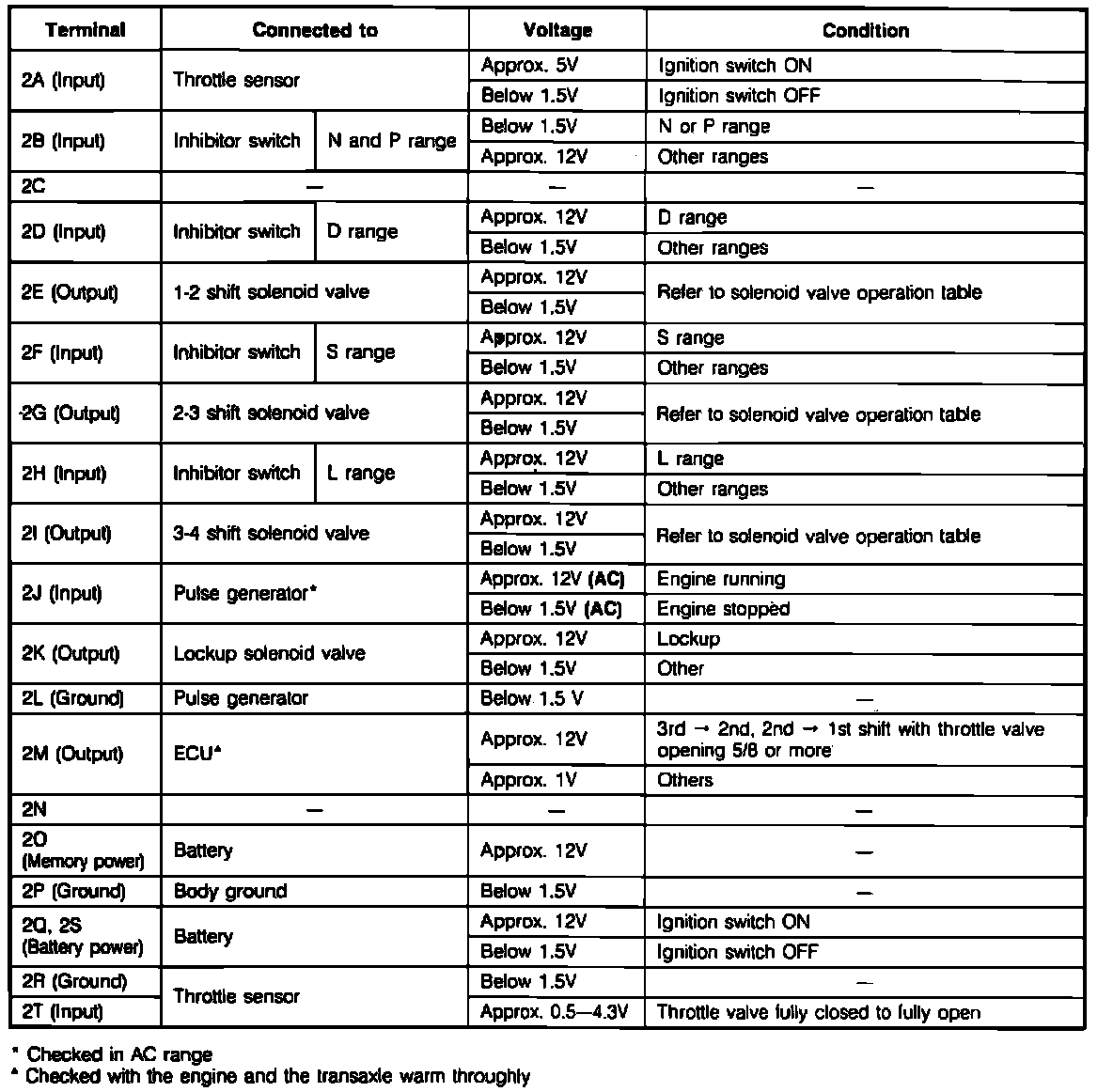

Control System. EC-AT. Turbo. ECU Pin Voltage Chart:

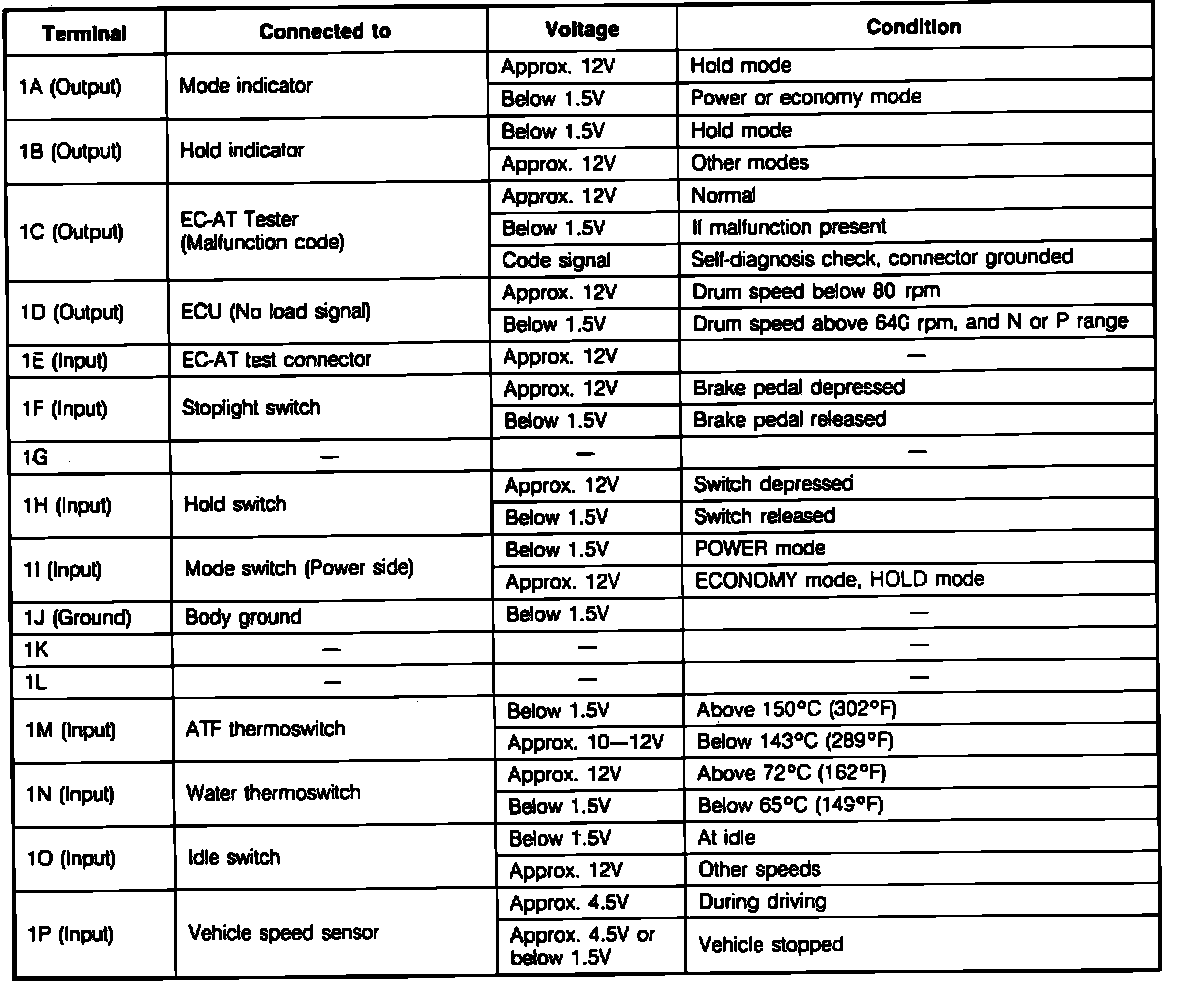

Control System. EC-AT. Turbo. ECU Pin Voltage Chart:
