Home >> Mazda >> 1992 >> 626 L4-2184cc 2.2L SOHC Turbo F2 >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Locations

Backup Lamp: Locations

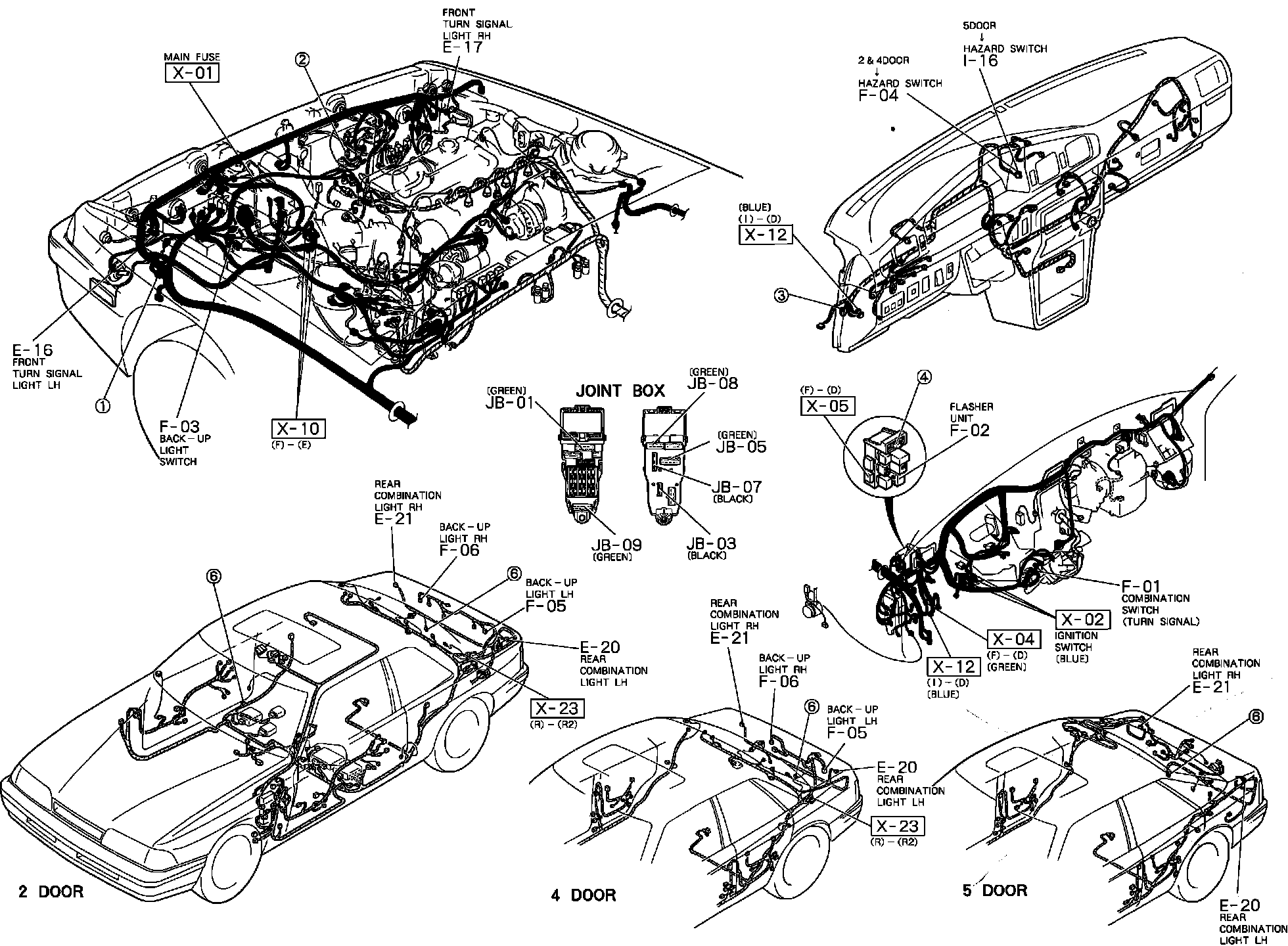

Back-Up, Turn And Hazard Flasher Lights. Harness And Connector Locations:
