Connector Locations

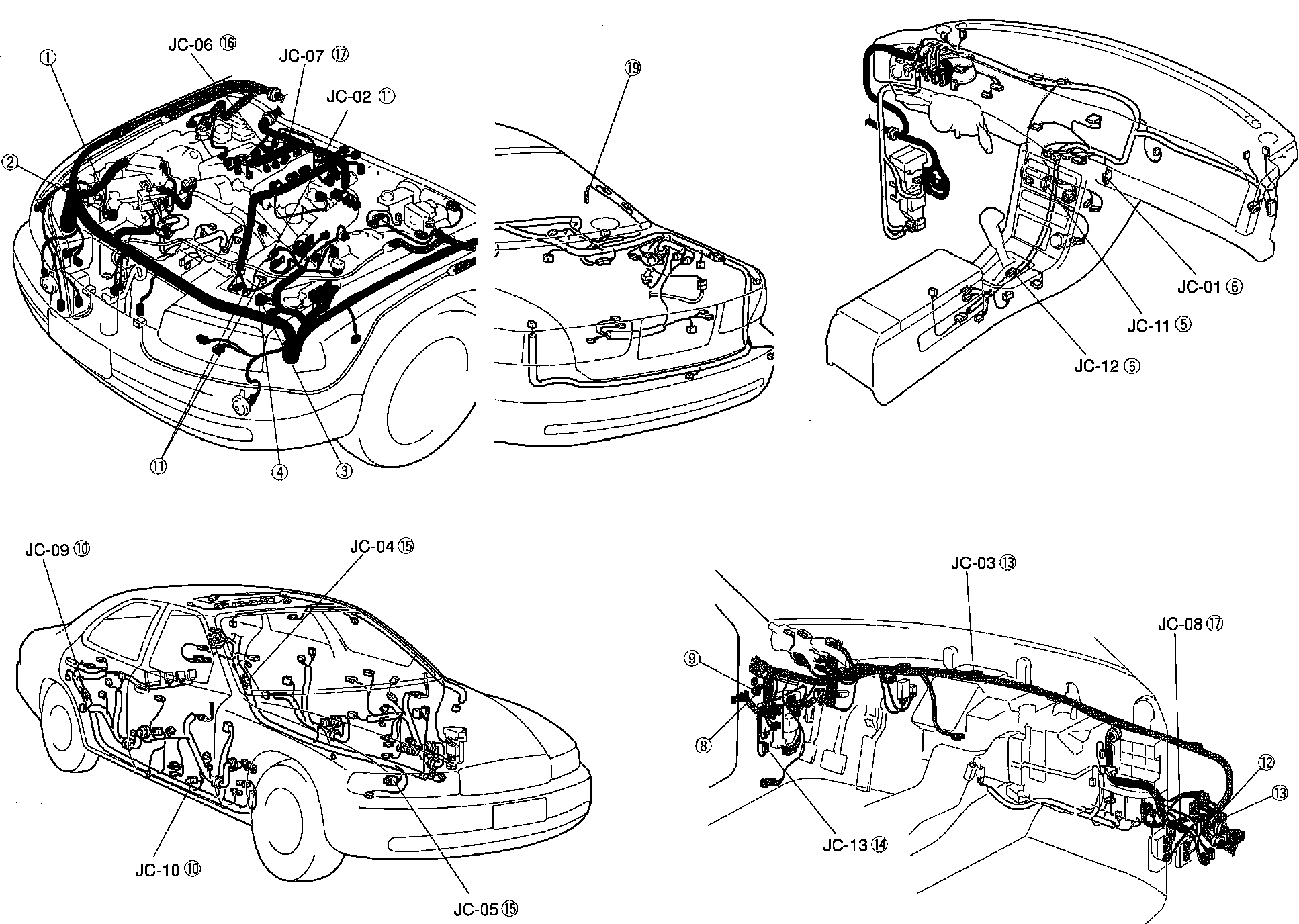

Ground Distribution. Harness And Connector Locations:

Connector A-01: Top Of Engine
Connector A-02: Rear Of Engine Compartment
Connector A-03: Front Of Engine
Connector A-04: Front Of Engine
Connector A-05: LH Side Of Engine Compartment
Connector B-01: RH Side Of Engine Compartment
Connector B-02: LH Side Of Engine Compartment
Connector B-03: RH Side Of Engine Compartment
Connector B-04: LH Side Of Engine Compartment
Connector B-05: At Fuel Tank
Connector B-07: Behind RH Side Of Instrument Panel
Connector B-08: Behind RH Side Of Instrument Panel
Connector B-09: RH Side Of Engine Compartment
Connector B-10: Top Of Engine
Connector B-11: Top Of Engine
Connector B-13: At Fuel Tank
Connector B-14: LH Side Of Engine Compartment
Connector B-15: Top Of Engine
Connector B-18: Front Of Engine
Connector B-19: LH Side Of Engine Compartment
Connector B-21: Top Of Engine
Connector B-22: Top Of Engine
Connector B-24: LH Side Of Engine
Connector B-25: Top Of Engine
Connector B-26: Top Of Engine
Connector B-27: Top Of Engine
Connector B-28: Top Of Engine
Connector B-29: Top Of Engine
Connector B-30: Top Of Engine
Connector B-31: Top Of Engine
Connector B-32: Front Of Engine
Connector B-33: Top Of Engine
Connector B-34: Top Of Engine
Connector B-35: Rear Of Engine
Connector B-36: Rear Of Engine
Connector B-37: RH Rear Of Vehicle
Connector B-38: At Fuel Tank
Connector B-39: LH Side Of Engine Compartment
Connector B-40: Rear Of Engine
Connector B-41: Top Of Engine
Connector B-42: Top Of Engine
Connector C-01: Behind LH Side Of Instrument Panel
Connector C-02: Top Of Engine
Connector C-03: LH Side Of Engine
Connector C-04: LH Side Of Engine Compartment
Connector C-05: LH Side Of Engine Compartment
Connector C-06: LH Front Of Engine Compartment
Connector C-08: Behind LH Side Of Instrument Panel
Connector D-01: Behind LH Side Of Instrument Panel
Connector D-02: LH Rear Of Engine Compartment
Connector D-03: RH Front Of Engine Compartment
Connector E-01: Front Of Engine Compartment
Connector E-02: LH Side Of Engine Compartment
Connector E-03: LH Front Of Engine Compartment
Connector E-04: RH Front Of Engine Compartment
Connector E-05: RH Front Of Engine Compartment
Connector E-06: LH Front Of Engine Compartment
Connector E-07: RH Side Of Engine Compartment
Connector E-14: Center Rear Of Luggage Compartment
Connector E-15: Center Rear Of Luggage Compartment
Connector E-16: LH Rear Of Luggage Compartment
Connector E-17: RH Rear Of Luggage Compartment
Connector E-18: Center Of Luggage Compartment
Connector E-19: RH Side Of Luggage Compartment
Connector E-20: RH Side Of Luggage Compartment
Connector E-21: RH Side Of Luggage Compartment
Connector F-01: Behind LH Side Of Instrument Panel
Connector F-02: LH Front Of Engine Compartment
Connector F-03: RH Front Of Engine Compartment
Connector F-04: Behind Center Of Instrument Panel
Connector F-05: Behind LH Side Of Instrument Panel
Connector F-06: LH Side Of Engine Compartment
Connector F-08: RH Front Of Engine Compartment
Connector F-09: LH Front Of Engine Compartment
Connector G-01: Behind Center Of Instrument Panel
Connector G-02: Behind RH Side Of Instrument Panel
Connector G-03: Behind RH Side Of Instrument Panel
Connector G-05: Behind RH Side Of Instrument Panel
Connector G-07: LH Side Of Engine Compartment
Connector G-08: RH Side Of Engine Compartment
Connector G-09: Front Of Engine Compartment
Connector G-10: LH Side Of Engine Compartment
Connector G-12: Behind Center Of Instrument Panel
Connector G-13: Behind RH Side Of Instrument Panel
Connector G-14: Behind RH Side Of Instrument Panel
Connector G-15: Center Rear Of Engine Compartment
Connector G-16: Behind Center Of Instrument Panel
Connector G-17: Behind LH Side Of Instrument Panel
Connector G-18: Behind Center Of Instrument Panel
Connector G-27: Behind RH Side Of Instrument Panel
Connector G-28: Behind Center Of Instrument Panel
Connector H-01: Behind RH Side Of Instrument Panel
Connector H-02: RH Side Of Engine Compartment
Connector H-03: Top Of Engine
Connector H-04: Top Of Engine
Connector H-05: Top Of Engine
Connector H-06: Below Enter Console
Connector H-07: Behind LH Side Of Instrument Panel
Connector I-01: At LH Vanity Mirror
Connector I-02: At RH Vanity Mirror
Connector I-04: Center Front Luggage Compartment
Connector I-05: At RH Side Of Rear Window
Connector I-06: Below Center Of Instrument Panel
Connector I-07: Center Front Of Luggage Compartment
Connector I-09: Below Center Console
Connector I-13: Behind Center Side Of Instrument Panel
Connector I-14: Behind Center Side Of Instrument Panel
Connector I-15: Center Rear Of Luggage Compartment
Connector I-16: Center Front Of Luggage Compartment
Connector I-17: Center Of Roof
Connector I-18: Center Of Roof
Connector I-19: Behind LH Side Of Instrument Panel
Connector I-20: Behind LH Side Of Instrument Panel
Connector I-21: In LH Front Door
Connector I-22: In RH Front Door
Connector I-23: In LH Rear Door
Connector I-24: In RH Rear Door
Connector I-25: Behind LH Side Of Instrument Panel
Connector I-26: In LH Front Door
Connector I-27: In LH Rear Door
Connector I-28: In RH Rear Door
Connector I-29: In LH Front Door
Connector I-30: In RH Front Door
Connector J-01: Behind Center Side Of Instrument Panel
Connector J-02: LH Side Of Luggage Compartment
Connector J-03: Behind LH Side Of Instrument Panel
Connector J-04: Behind Center Side Of Instrument Panel
Connector J-05: Behind RH Side Of Instrument Panel
Connector J-06: Behind LH Side Of Instrument Panel
Connector J-07: LH Side Of Luggage Compartment
Connector J-08: RH Side Of Luggage Compartment
Connector J-09: LH Side Of Luggage Compartment
Connector J-10: RH Side Of Luggage Compartment
Connector J-11: LH Side Of Luggage Compartment
Connector J-12: LH Side Of Luggage Compartment
Connector J-13: Behind Center Side Of Instrument Panel
Connector J-14: LH Side Of Luggage Compartment
Connector J-15: In LH Front Door
Connector J-16: In LH Front Door
Connector J-17: RH Side Of Luggage Compartment
Connector JB-01: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-02: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-03: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-04: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-05: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-06: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-07: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-08: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-09: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-10: Behind LH Side Of Instrument Panel, On Joint Box
Connector JB-11: Behind LH Side Of Instrument Panel, On Joint Box
Connector JC-01: Behind Center Of Instrument Panel
Connector JC-02: Top Of Engine
Connector JC-03: Behind Center Of Instrument Panel
Connector JC-04: In LH Rear Door
Connector JC-05: In LH Front Door
Connector JC-06: Top Of Engine
Connector JC-07: Top Of Engine
Connector JC-08: Behind RH Side Of Instrument Panel
Connector JC-09: In LH Rear Door
Connector JC-10: In LH Front Door
Connector JC-11: Behind Center Of Instrument Panel
Connector JC-12: Below Center Console
Connector JC-13: Behind LH Side Of Instrument Panel
Connector JC-14: Behind RH Side Of Instrument Panel
Connector JC-15: RH Side Of Luggage Compartment
Connector JC-16: Behind RH Side Of Instrument Panel
Connector JC-17: Behind LH Side Of Instrument Panel
Connector JC-18: Behind RH Side Of Instrument Panel
Connector JC-19: RH Front Of Luggage Compartment
Connector JC-20: Behind LH Side Of Instrument Panel
Connector JC-21: Behind LH Side Of Instrument Panel
Connector JC-24: RH Side Of Luggage Compartment
Connector JC-25: Behind RH Side Of Instrument Panel
Connector K-01: Rh Side Of Engine Compartment
Connector K-03: IN RH Front Door
Connector K-04: In LH Rear Door
Connector K-05: In LH Rear Door
Connector K-06: In LH Front Door
Connector K-07: In RH Rear Door
Connector K-08: In RH Rear Door
Connector K-09: In RH Rear Door
Connector K-10: Behind LH Side Of Instrument Panel
Connector K-11: In LH Front Door
Connector K-12: In RH Front Door
Connector K-13: In LH Rear Door
Connector K-14: In RH Rear Door
Connector K-15: In RH Front Door
Connector K-17: In LH Front Door
Connector K-18: In LH Front Door
Connector L-01: Behind LH Side Of Instrument Panel
Connector L-04: In LH Front Door
Connector L-05: In RH Front Door
Connector M-01: Center Rear Of Luggage Compartment
Connector M-02: LH Rear Of Luggage Compartment
Connector M-03: LH Rear Of Luggage Compartment
Connector M-04: LH Rear Of Luggage Compartment
Connector M-05: Center Of Roof
Connector M-06: Below Center Console
Connector M-07: Center Of Roof
Connector M-08: Center Of Roof
Connector M-09: Center Of Roof
Connector M-10: Center Of Roof
Connector M-11: LH Rear Of Luggage Compartment
Connector O-01: Center Rear Of Luggage Compartment
Connector O-02: RH Rear Of Luggage Compartment
Connector O-03: RH Rear Of Luggage Compartment
Connector O-04: LH Side Of Luggage Compartment
Connector O-05: LH Side Of Luggage Compartment
Connector O-06: LH Side Of Engine Compartment
Connector O-07: Rh Side Of Engine Compartment
Connector P-01: Below LH Front Seat
Connector P-02: Below RH Front Seat
Connector P-03: Below LH Front Sea
Connector P-04: Below LH Front Sea
Connector P-05: Below LH Front Sea
Connector P-06: Below LH Front Sea
Connector P-07: Below LH Front Sea
Connector P-08: Below RH Front Seat
Connector P-09: Below RH Front Seat
Connector P-10: Below RH Front Seat
Connector P-11: Below LH Front Seat
Connector P-12: Below RH Front Seat
Connector P-13: Below LH Front Seat
Connector P-15: Below LH Front Seat
Connector P-16: Below LH Front Seat
Connector P-17: Below RH Front Seat
Connector P-18: Below RH Front Seat
Connector P-19: Below Center Console
Connector P-20: Below Center Console
Connector Q-01: Behind LH Side Of Instrument Panel
Connector Q-02: LH Side Of Engine Compartment
Connector Q-03: Behind LH Side Of Instrument Panel
Connector Q-04: Behind LH Side Of Instrument Panel
Connector S-01: Behind LH Side Of Instrument Panel
Connector S-02: Behind Center Of Instrument Panel
Connector S-03: In Steering Column
Connector S-04: LH Rear Of Engine Compartment
Connector S-05: LH Rear Of Engine Compartment
Connector S-06: RH Side Of Engine Compartment
Connector S-07: RH Side Of Engine Compartment
Connector S-08: Behind LH Side Of Instrument Panel
Connector S-09: Behind LH Side Of Instrument Panel
Connector S-10: Behind RH Side Of Instrument Panel
Connector S-11: Behind LH Side Of Instrument Panel, RH Side Of Steering Column
Connector T-04: Behind LH Side Of Instrument Panel
Connector T-05: LH Rear Of Luggage Compartment
Connector T-06: Below Center Console
Connector T-07: RH Rear Of Luggage Compartment
Connector T-12: Center Front Of Engine
Connector T-13: Center Front Of Luggage Compartment
Connector X-01: RH Side Of Engine Compartment
Connector X-02: RH Side Of Engine Compartment
Connector X-03: Behind LH Side Of Instrument Panel
Connector X-04: Behind LH Side Of Instrument Panel
Connector X-05: Behind LH Side Of Instrument Panel
Connector X-06: Behind LH Side Of Instrument Panel
Connector X-07: Behind LH Side Of Instrument Panel
Connector X-08: Behind LH Side Of Instrument Panel
Connector X-09: Behind RH Side Of Instrument Panel
Connector X-10: Front Of Engine Compartment
Connector X-11: RH Rear Of Luggage Compartment
Connector X-12: Behind LH Side Of Instrument Panel
Connector X-13: Behind LH Side Of Instrument Panel
Connector X-14: LH Side Of Engine Compartment
Connector X-16: Behind RH Side Of Instrument Panel
Connector X-20: LH Side Of Engine Compartment
Connector X-22: Behind RH Side Of Instrument Panel
Connector X-23: Behind RH Side Of Instrument Panel
Connector X-26: Behind RH Side Of Instrument Panel
Connector X-27: Behind RH Side Of Instrument Panel
Connector X-28: Behind LH Side Of Instrument Panel
Connector X-29: Behind LH Side Of Instrument Panel
Connector X-30: Behind RH Side Of Instrument Panel
Connector X-31: Behind LH Side Of Instrument Panel
Connector X-32: LH Side Of Luggage Compartment
Connector X-33: Behind RH Side Of Instrument Panel
