Home >> Mazda >> 1992 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Connector Views

Connector Views

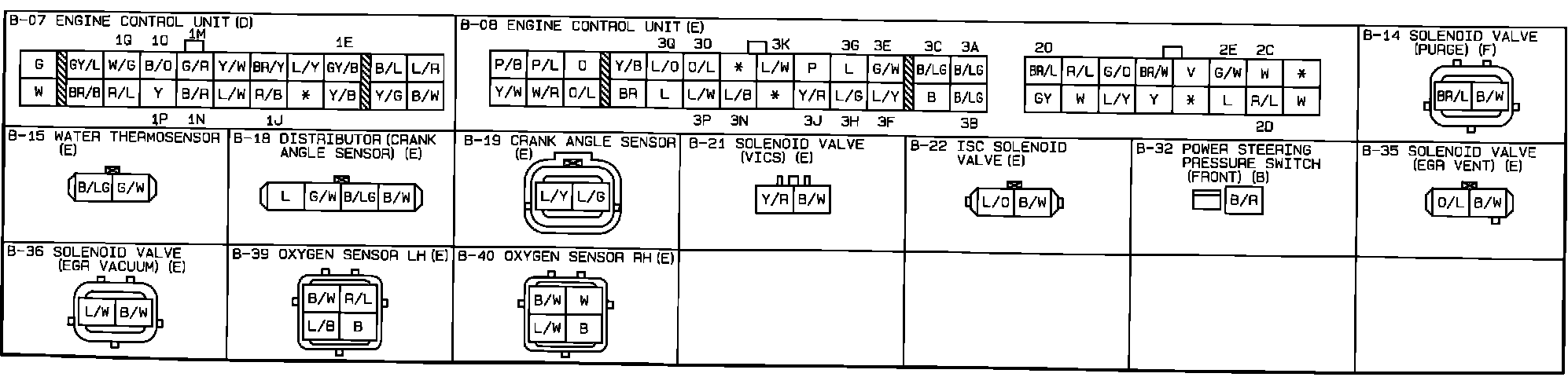

Engine Control System. Connector Identification:

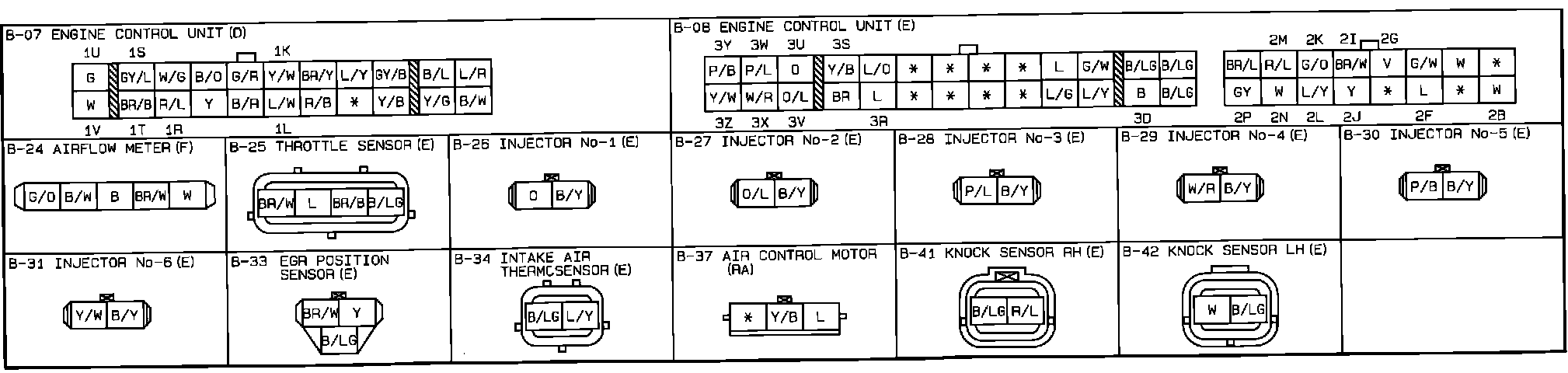

Engine Control System. Connector Identification:

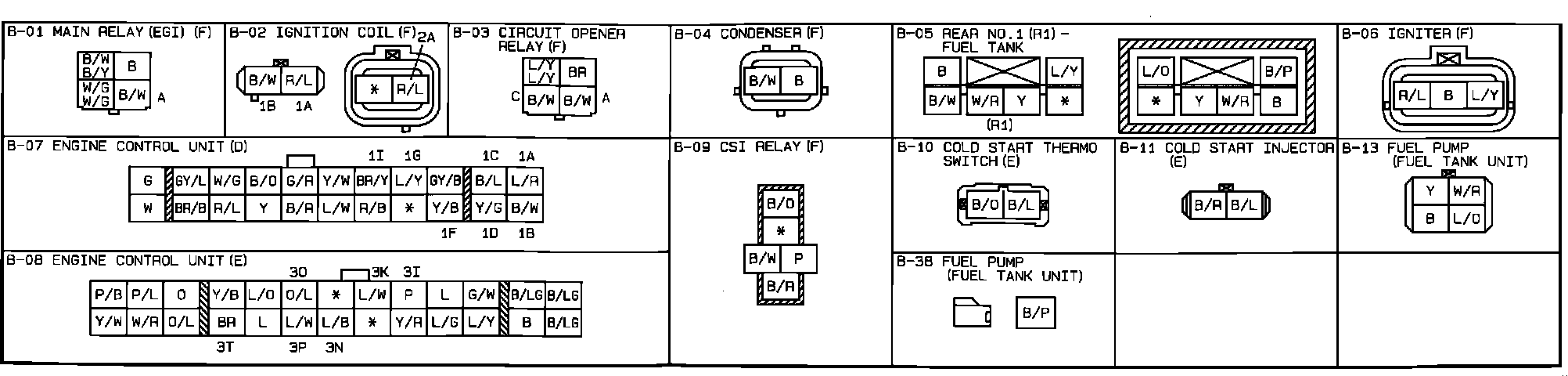

Engine Control System. Connector Identification:



Engine Control System. Harness And Connector Locations:



Engine Control System. Harness And Connector Locations:



Engine Control System. Harness And Connector Locations:
