Fail-Safe Relay and Warning Lamp Diode
Refer to
Fig. 133
when testing fail-safe relay.

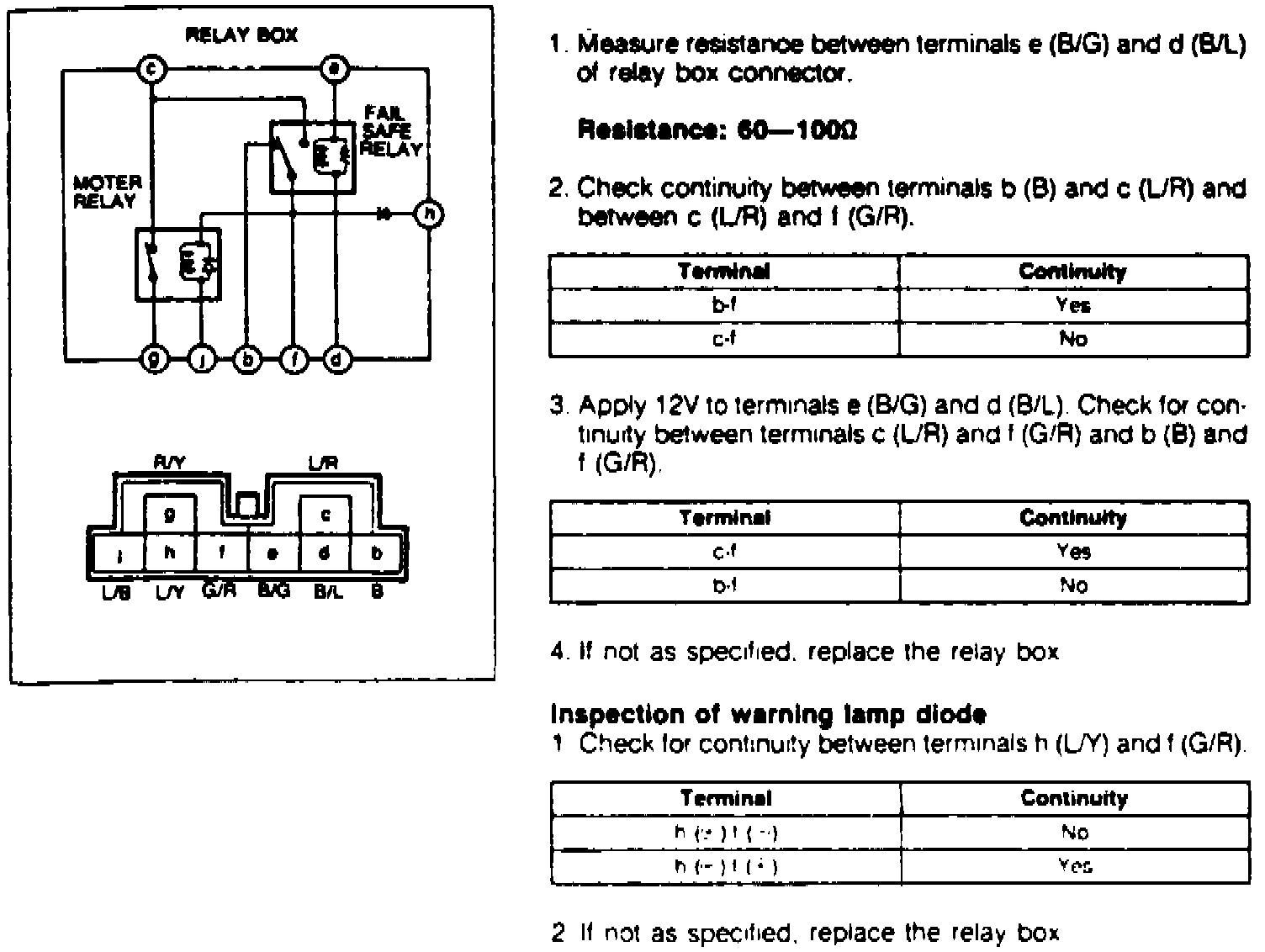

Fig. 133 Fail-safe Relay Inspection:
