Key Interlock Solenoid

Inspection
1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the key interlock solenoid connector.
4. Insert the ignition key in the key cylinder.

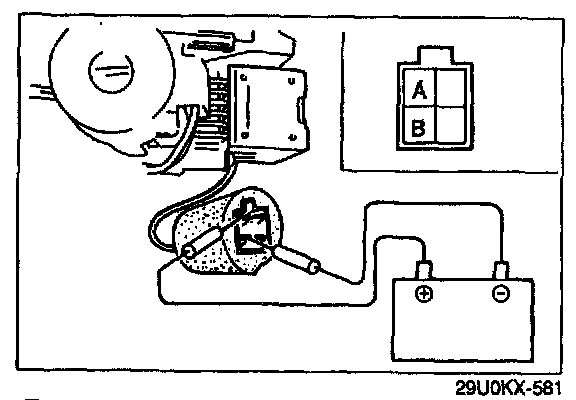

5. Apply battery voltage between terminals A and B, and verify that the solenoid operates.
6. It not as specified, replace key interlock solenoid.
7. Connect the key interlock solenoid connector.
8. Install the column cover.
9. Connect the negative battery cable.
