Flex Plate: Service and Repair

Removal / Inspection / Installation

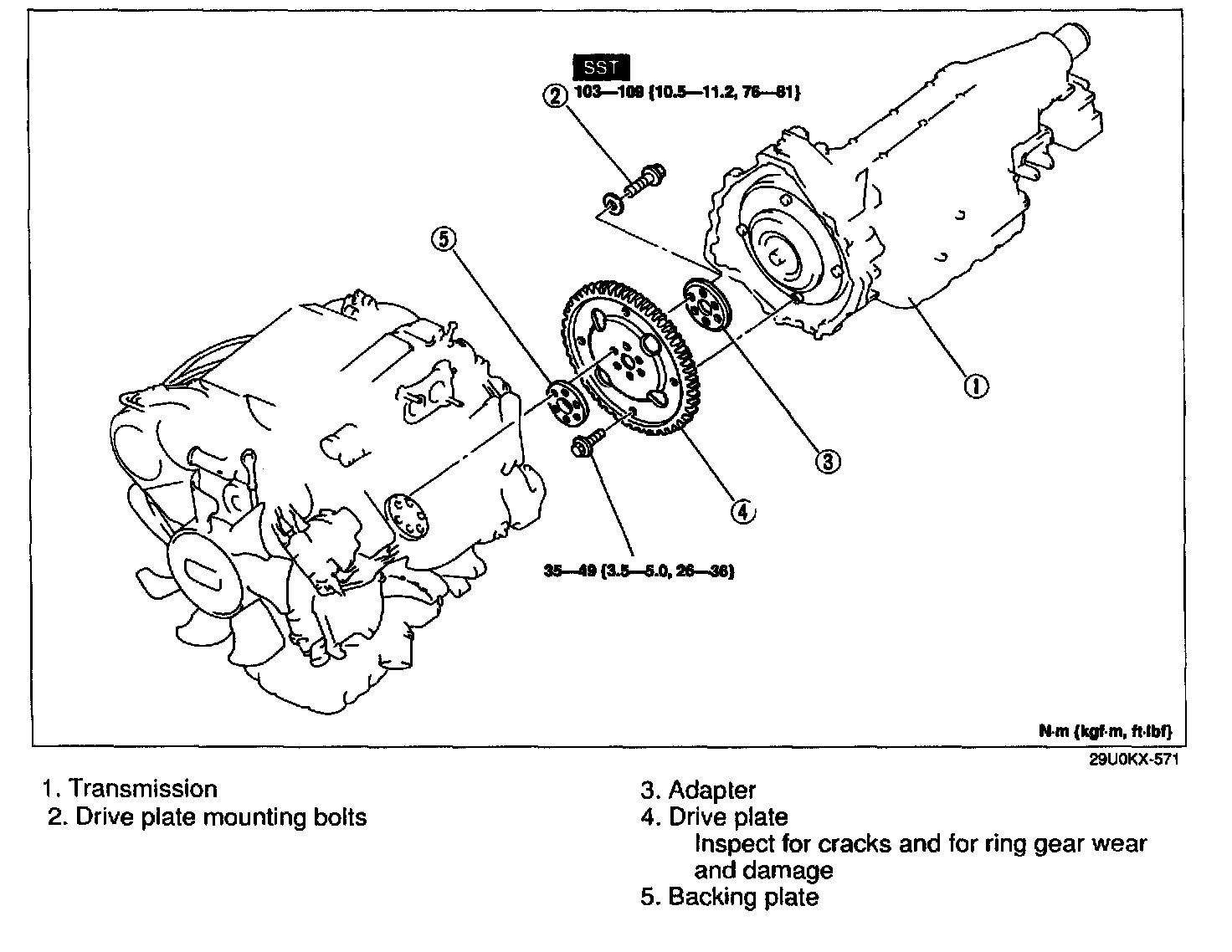

1. Remove in the order shown in the figure, referring to Removal Note.
2. Inspect all parts and replace as necessary.
3. Install in the reverse order of removal, referring to Installation Note.




Removal note

Drive plate mounting bolts
1. Set the SST or equivalent against the drive plate.
2. Remove the drive plate.




Installation note

Drive plate mounting bolts
1. Set the SST or equivalent against the drive plate.
2. Tighten the drive plate Installation bolts in two or three steps as shown.

Tightening torque: 103 - 109 N.m (10.5 - 11.2 kgf.m, 76 - 81 ft.lbf)
