Fluid Line/Hose: Service and Repair

Removal/Inspection/Installation
1. Remove in the order shown in the figure.
2. Inspect all parts and repair or replace as necessary.
3. Install in the reverse order of removal, referring to Installation Note.




B6 SOHC




K8 DOHC

Installation Note

Oil hoses






NOTE:
- If reusing the hose clamp, make sure to install it into the groove on the hose.

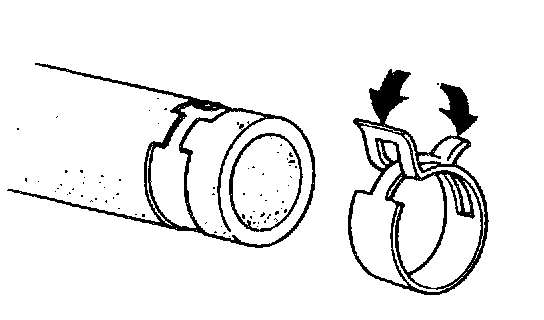

- After installing, retighten the hose clamp by pressing down in the direction of the arrows shown in the figure.




1. Install a new hose clamp onto the hose.
2. Align the marks, and slide the oil cooler hose onto the oil cooler pipe until it is fully seated against the ridge.
3. Install the new hose clamp onto the hose at the center of the mark.
4. Verify that the hose clamp does not interfere with any other parts.
