Front

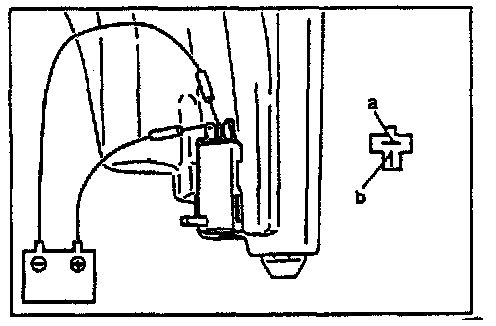

Fig. 9, Washer Motor Operation Test Connections:

1. Remove washer motor, then disconnect electrical connector and apply battery Voltage to terminal b and ground terminal a as shown in Fig. 9.
2. If washer motor does not operate, replace motor.
