Bearing Cover Assembly

Preparation

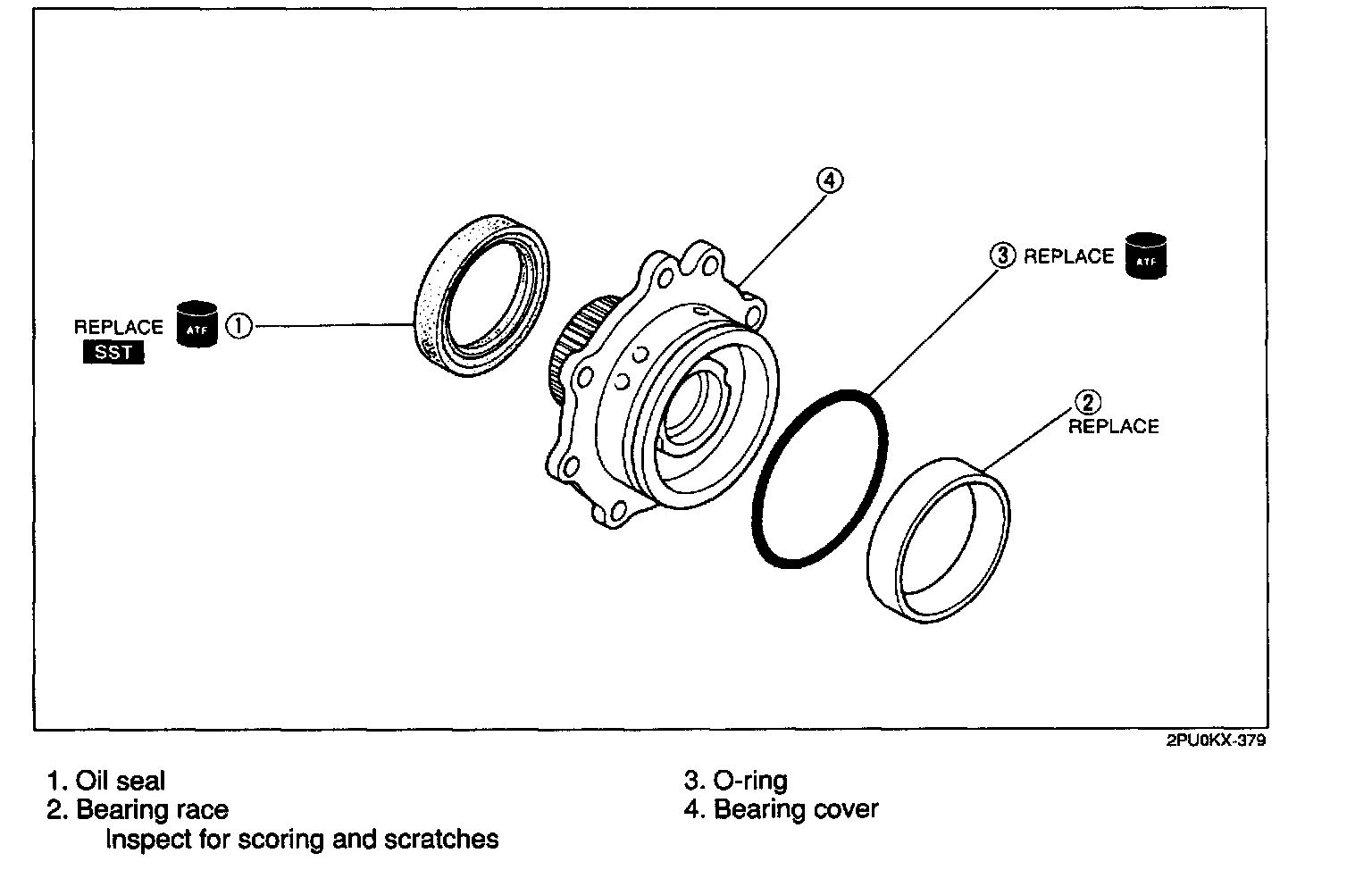

Disassembly/Inspection/Assembly
1. Disassemble in the order shown in the figure, referring to Disassembly Note.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly, referring to Assembly Procedure.

Disassembly note




Bearing race

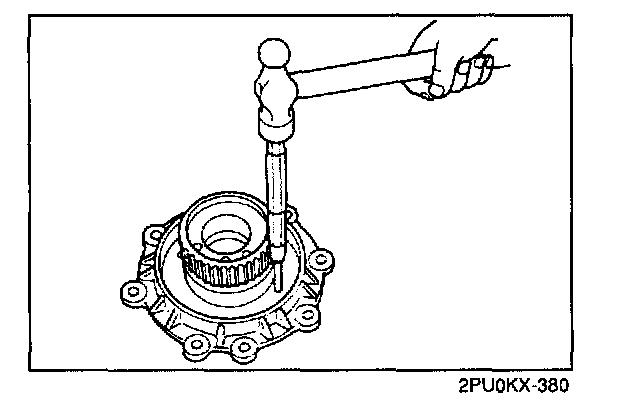

Remove the bearing race by using a pin punch and a hammer.

Assembly procedure




Bearing race
1. Apply ATF to the new O-ring and install it to bearing cover.

NOTE: O-ring inner diameter: 82.9 mm (3.264 in)

2. Press the new bearing race into the bearing cover.




Oil seal

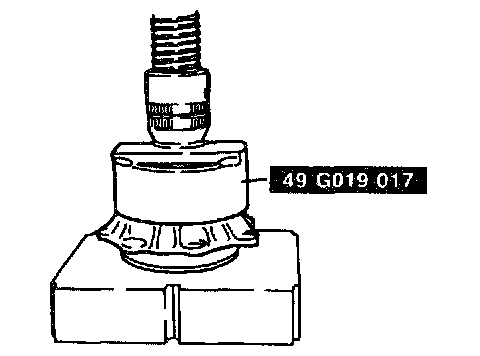

Press the new oil seal into the bearing cover by using the SST.
