Fluid - M/T: Service and Repair

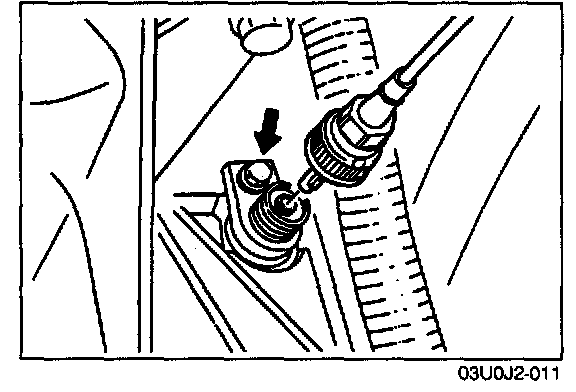

1. Disconnect the speedometer cable and remove the speedometer driven gear.

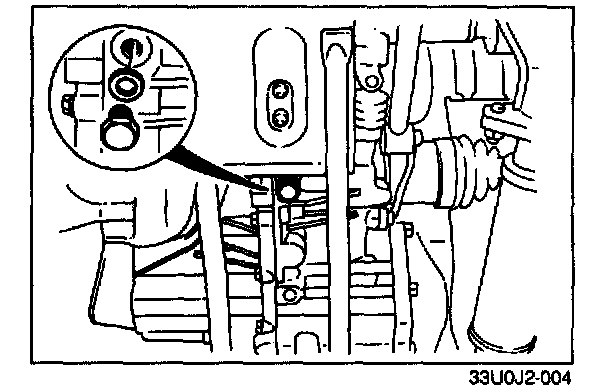

2. Remove the drain plug and washer. Drain the oil into a suitable container.
3. Install a new washer and the drain plug.

Tightening torque: 40 - 58 N-m (4.0 - 6.0 kgf-m, 29 - 43 ft-lbf)

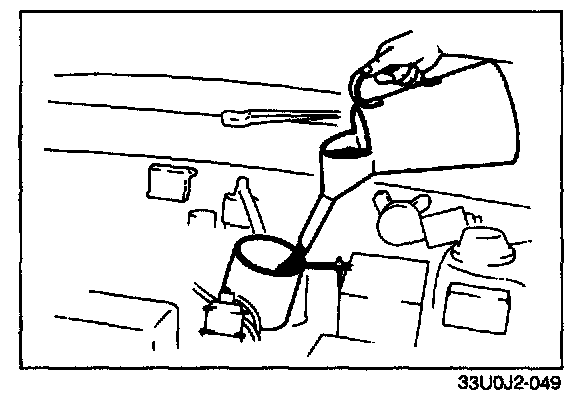

4. Add the necessary amount of the specified oil through the speedometer gear case hole.

Specified oil
Viscosity: All-season ATF Dexron(R) II, M2C33F or SAE 75W - 80
Above - 18 °C (0 °F) API service GL-4 or GL-5 SAE 80W - 90
Capacity: 3.35 liters (3.55 US qt, 2.96 Imp qt)




5. Verify the oil level.
6. Install the speedometer driven gear and connect the speedometer cable.
