Air Injection Pump: Service and Repair
Air Pump Replacement:
1.

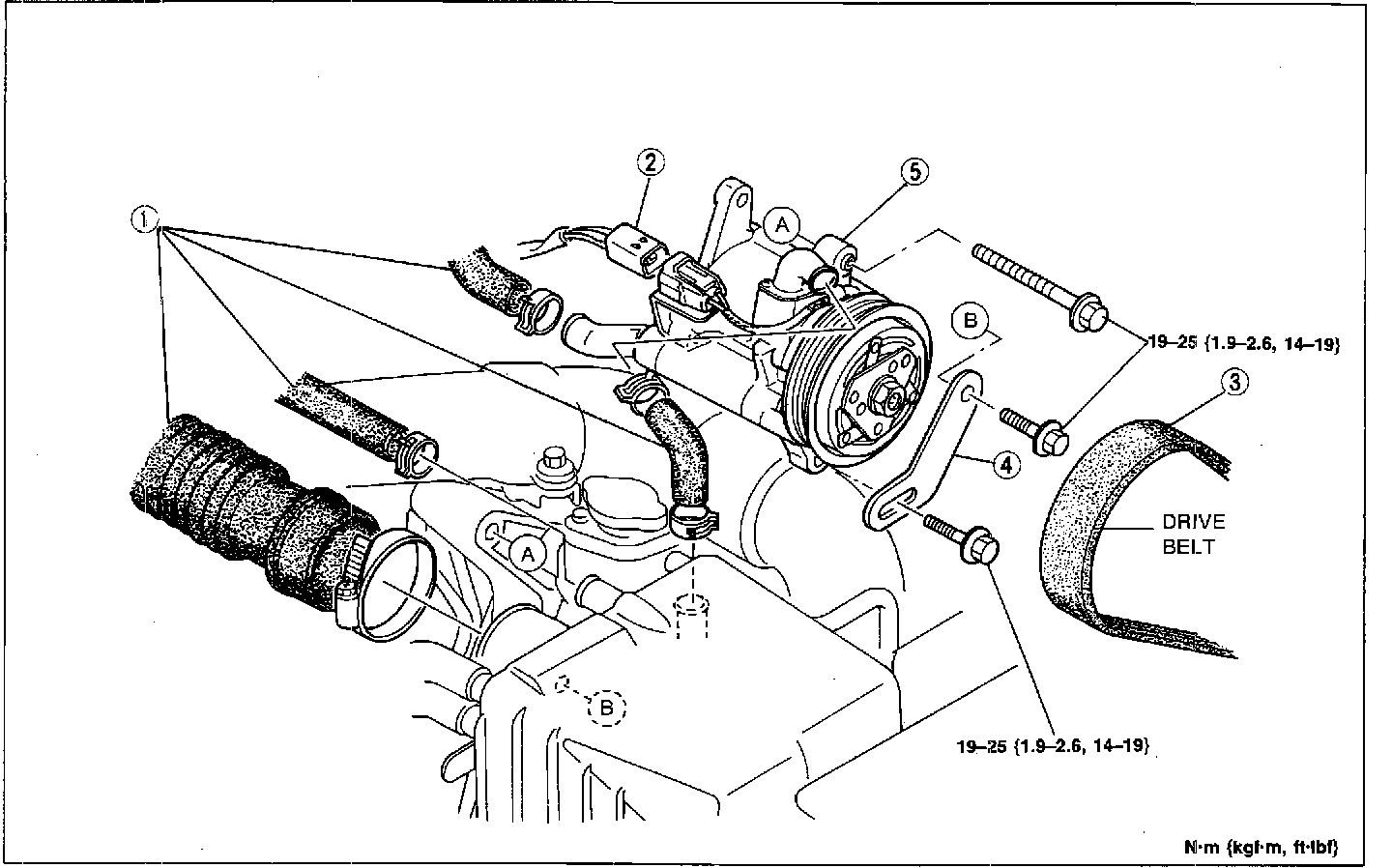

Remove in order shown on image.
2.
Install in reverse order of removal.
COMPONENTS
1.
Air Hoses
2.
Connector
3.
Drive Belt
4.
Bracket
5.
Air Pump
