Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1994
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

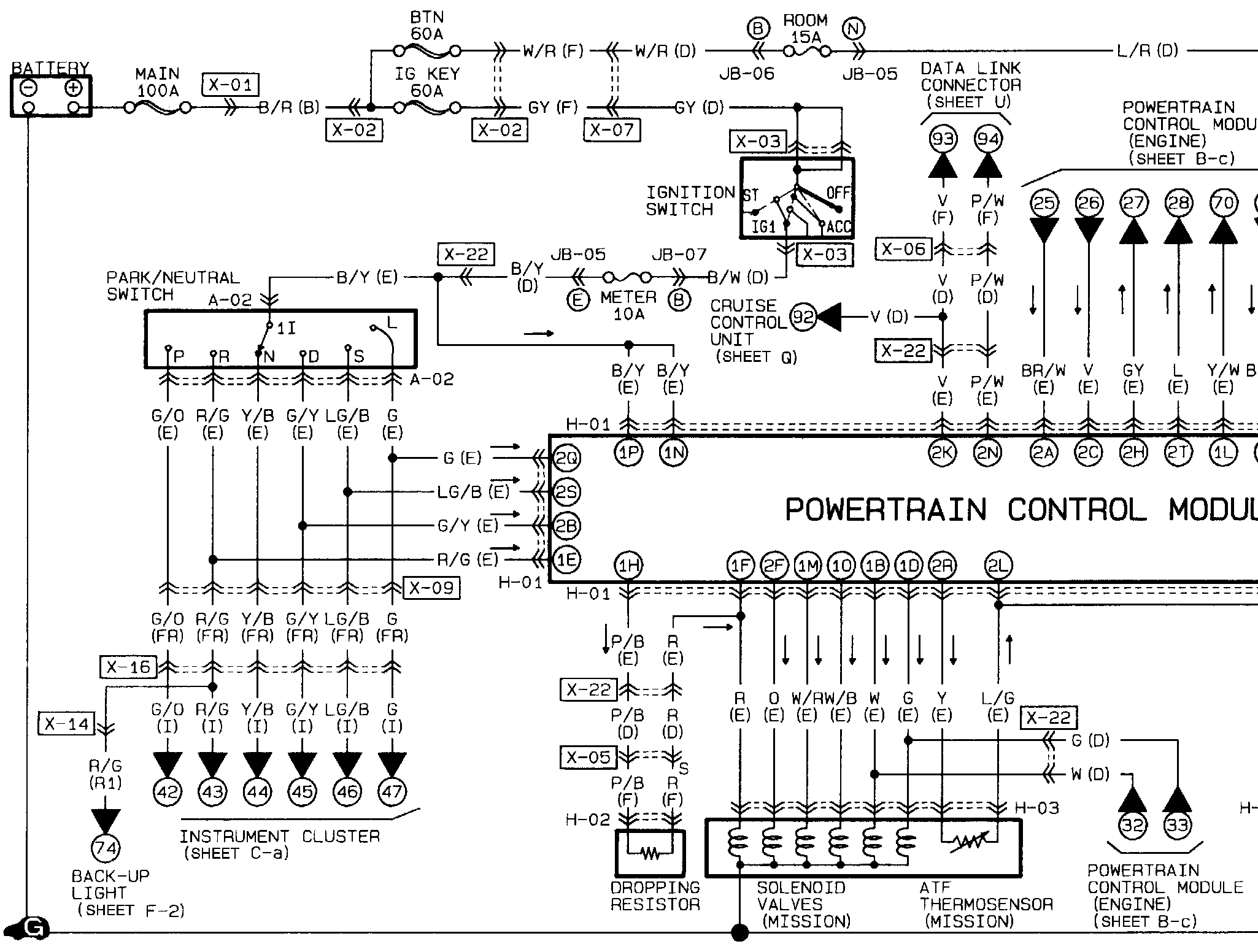

EC-AT Control System
EC-AT Control System
��wQEC-AT Control System:
