Compressor Clutch Relay: Testing and Inspection

A/C Relay

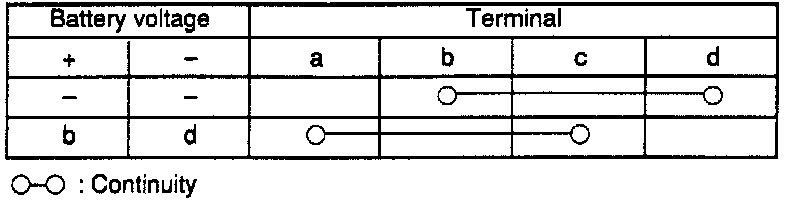

1. Check for no continuity between terminals a and c.

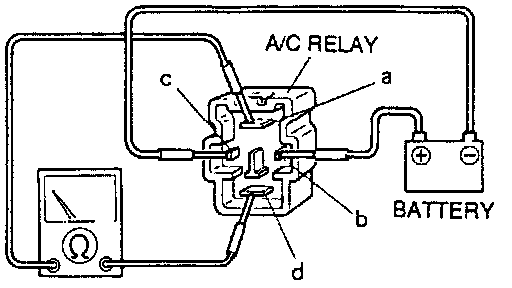

2. Connect battery voltage to terminal b and ground terminal d, and check for continuity between terminals a and c.
3. If continuity is not as specified, replace the relay.
