Drive Belt: Testing and Inspection

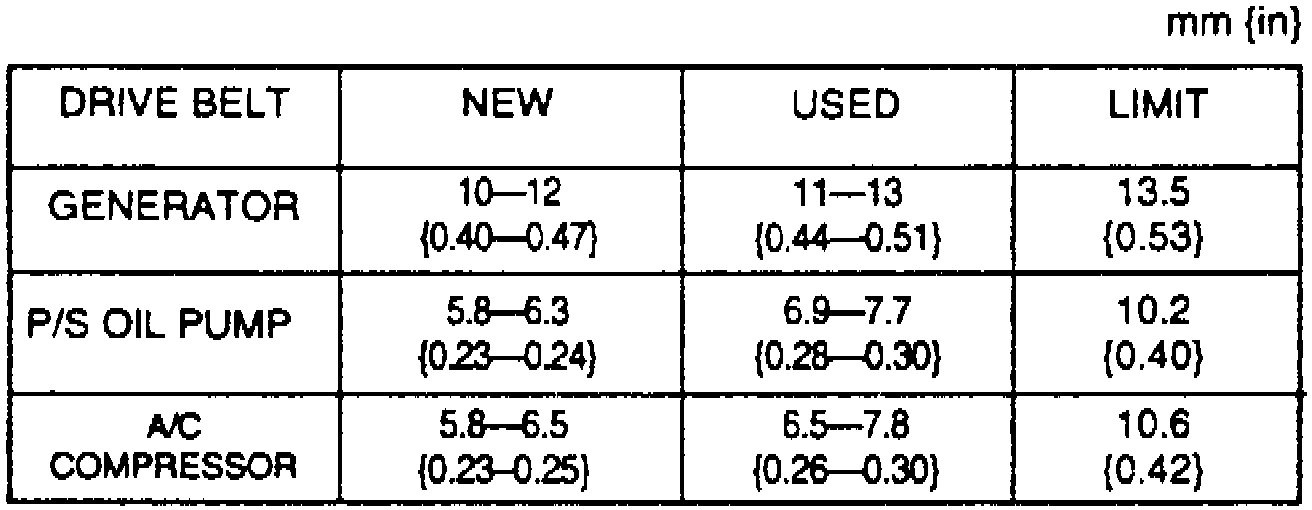

Fig. 57 Drive Belt Deflection Chart:

Measure drive belt deflection by applying 22 lbs. of pressure on belt between pulleys. Compare deflection measurement with specifications in Fig. 57. If deflection is not satisfactory, replace belt.
