Fluid - A/T: Testing and Inspection
AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTIONLevel
1. Park the vehicle on level ground.

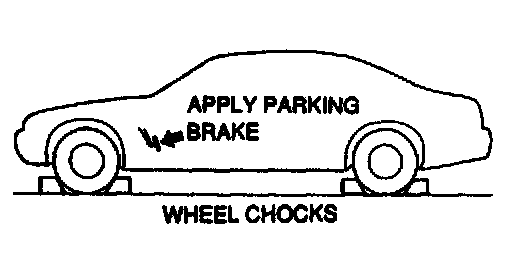

2. Apply the parking brake and securely position wheel chocks to prevent the vehicle from rolling.
3. Warm up the engine until the ATF temperature reaches 60 - 70°C (140 - 158°F).

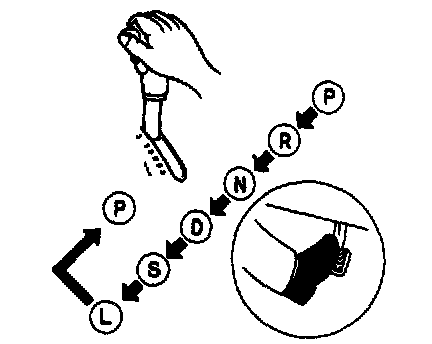

4. While depressing the brake pedal, shift the selector lever to each range (P-L). Leave it a few seconds in each range.
5. Shift back to P range.

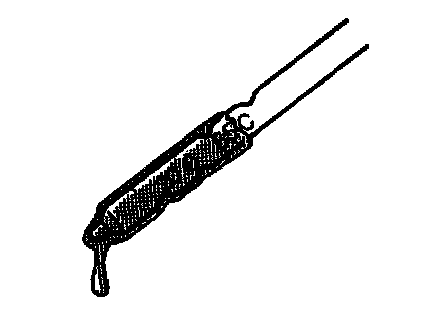

6. Ensure that the ATF level is in the hot (65°C) range. Add ATF to specification, if necessary.
ATF Type: Dexron(R) II or M-III
Capacity: 8.6 L {9.1 US qt, 7.6 Imp qt}
Condition
Determine whether the transmission should be disassembled by doing the following.

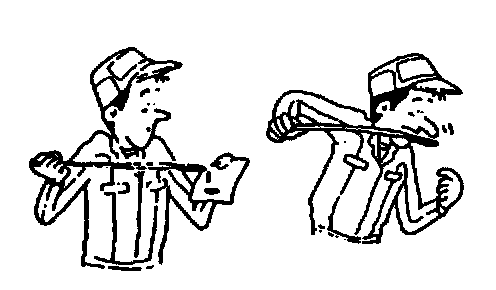

1. is the ATF muddy or varnished?
2. Does the ATF smell strange or unusual?.
Fluid leakage

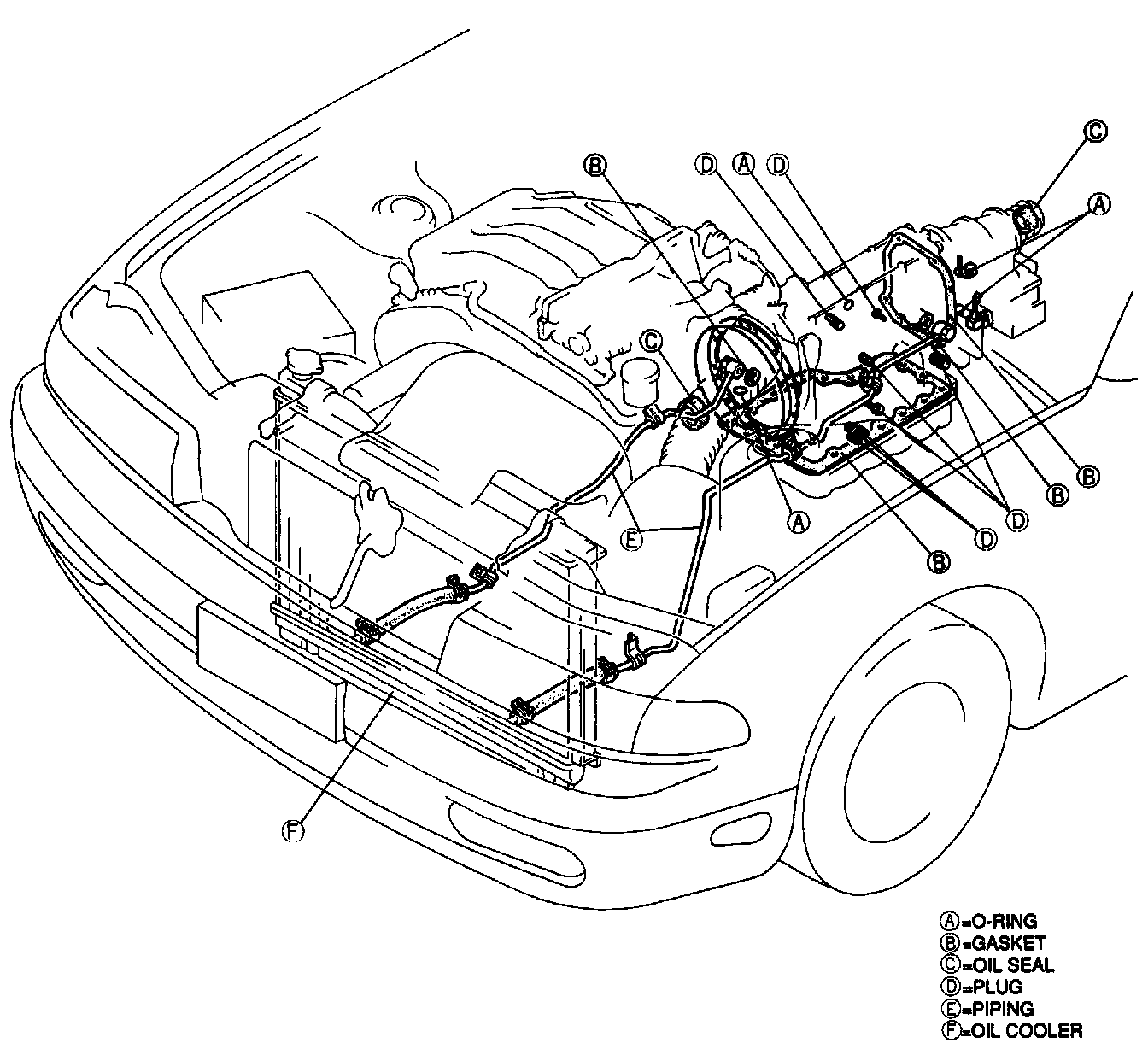

Check for ATF leakage at the points shown below and repair or replace as necessary.
