Air Temperature Sensor ( Ambient / Intake ): Service and Repair

REPLACEMENT
Intake Air Temperature Sensor (IAT) In Volume Airflow Sensor
The IAT is an integral component of the volume airflow sensor and is not serviced separately.

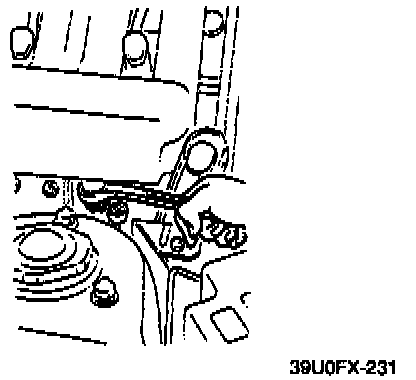

IAT In Intake Manifold Dynamic Chamber
1. Disconnect the IAT sensor connector.
2. Remove the sensor.
3. Install the sensor.






Torque: 7.8-12 Nm (69-104 in.lb.)
