Electrical Specifications

NOTE: Two separate intake air temperature sensors (IAT)s are utilized by the engine control system. One sensor is incorporated in the volume airflow sensor assembly and the other is mounted on the intake manifold dynamic chamber.

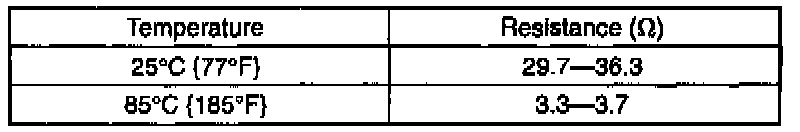

Intake Air Temperature Sensor Resistance Specifications:

VOLUME AIRFLOW SENSOR IAT SENSOR






DYNAMIC CHAMBER IAT SENSOR
