Idle Speed/Throttle Actuator - Electronic: Service and Repair

Replacement

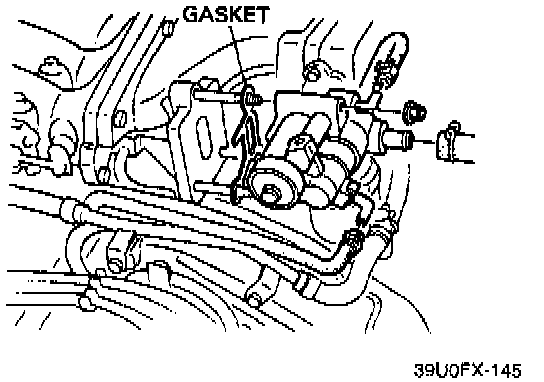

1. Remove the bypass air control (BAC) valve in the sequence described below.
a. Water hoses.
b. Air hose.
c. Bolts and nuts.
d. BAC valve.

2. Install with a new gasket in the reverse order of removal.

Specified Torque: 19-25 Nm (14-19 ft.lb.)
