B-08
B-08

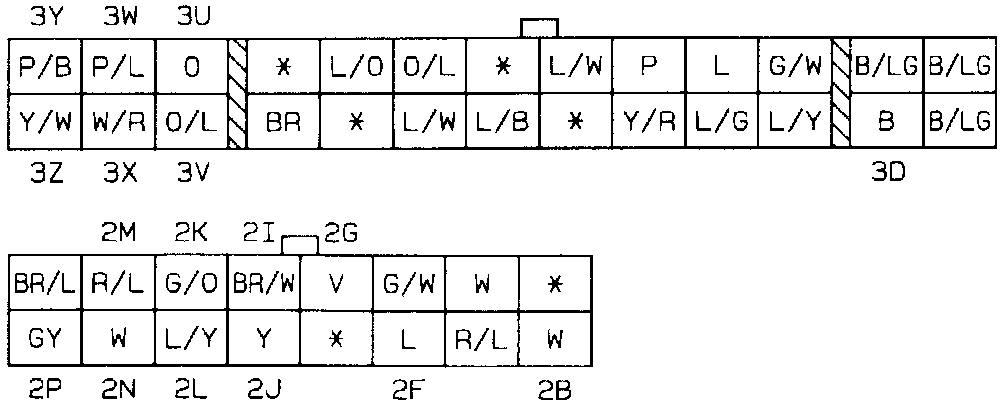

B-08 Powertrain Control Module (Engine) (E):

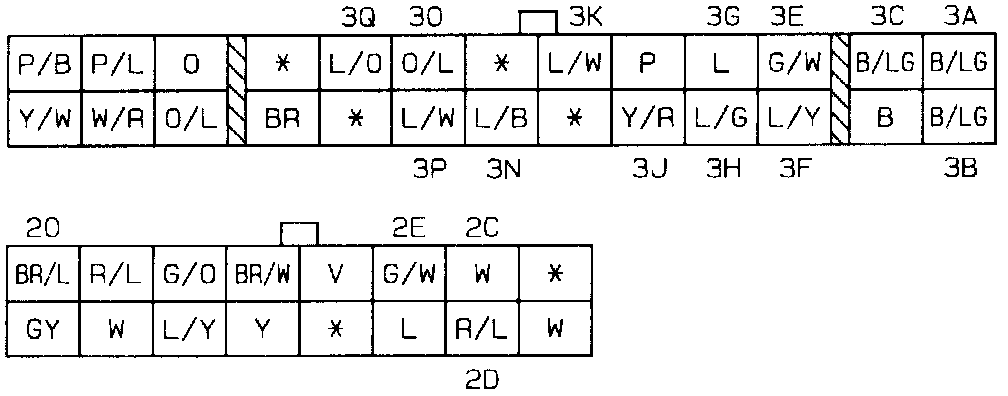

B-08 Powertrain Control Module (Engine) (E):

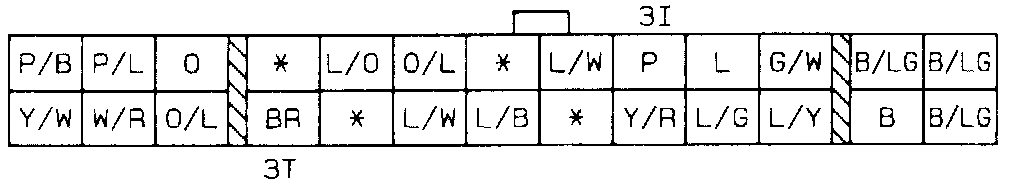

B-08 Powertrain Control Module (Engine) (E):
