Catalytic Converter: Service and Repair

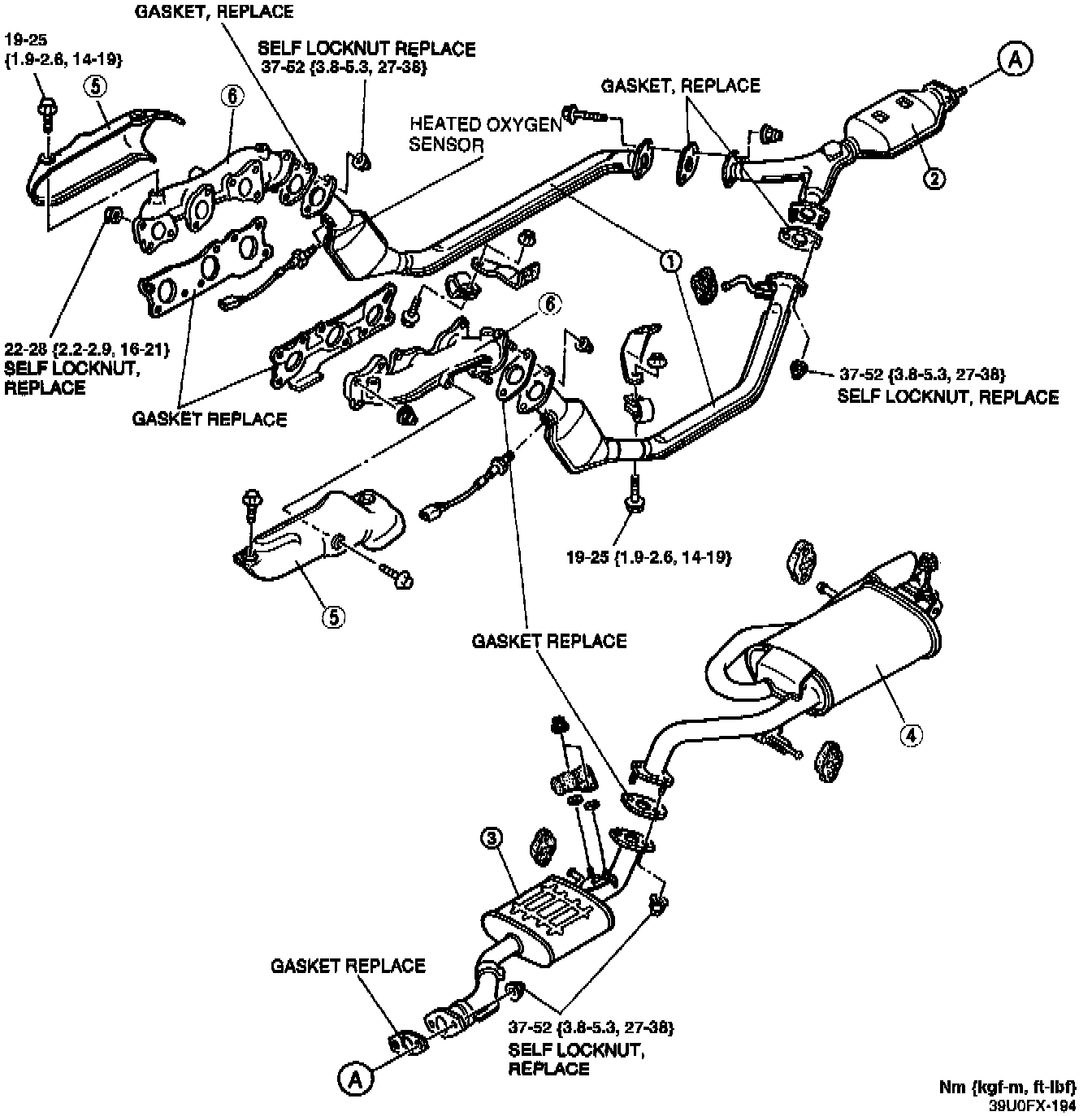

Use the image as a reference when servicing the three-way catalytic converters.


COMPONENTS
1. Front pipe assembly
2. Three-way catalyst
3. Pre-silencer
4. Main silencer
5. Exhaust manifold insulator
6. Exhaust manifold
