Dropping Resistor: Testing and Inspection
DROPPING RESISTORInspection
1. Disconnect the negative battery cable.
2. Disconnect the Dropping Resistor connector.

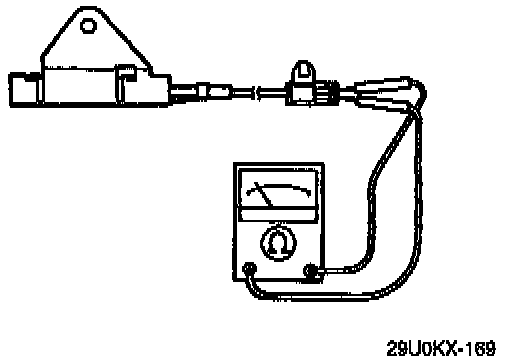

3. Measure the resistance between the terminals of the resistor.
Resistance: 10-14 ohms
4. If not correct, replace the Dropping Resistor.
5. Connect the Dropping Resistor connector.
6. Connect the negative battery cable.
