VEHICLE SPEED SENSOR (REVOLUTION SENSOR)
Replacement





1. Disconnect the negative battery cable.
2. Remove the front exhaust pipe (left side).

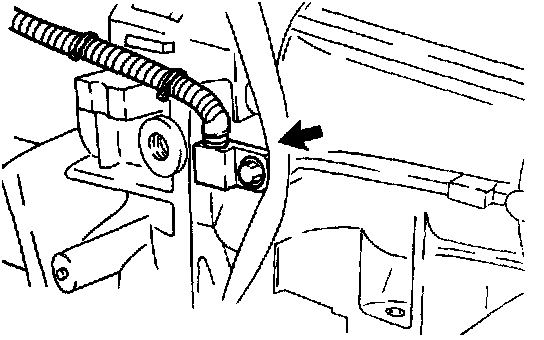

3. Disconnect the vehicle speed sensor connector.
4. Remove the vehicle speed sensor.
5. Apply ATF to a new O-ring and install it on the vehicle speed sensor.
6. Install the new vehicle speed sensor.

Tightening torque: 5.0 - 6.8 N.m {50 - 70 kgf.cm, 44 - 60 in.lbf}

7. Connect the vehicle speed sensor connector.
8. Install the front exhaust pipe.
9. Connect the negative battery cable.
