Transmission Temperature Sensor/Switch: Testing and Inspection
Inspection1. Refer to "Service and Repair" for removal of the ATF thermosensor.

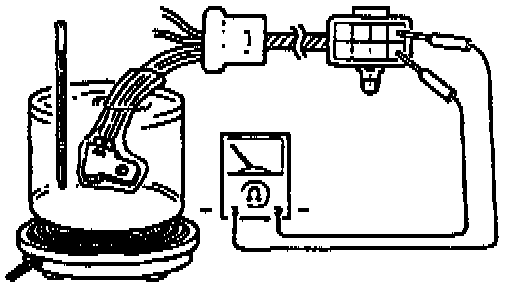

2. Place the ATF Thermosensor in water with a thermometer as shown, and heat the water gradually.
3. Measure the resistance between the terminals of the Thermosensor.
4. If not correct, replace the ATF Thermosensor.
5. Refer to "Service and Repair" for installation of the ATF Thermosensor.
