Crankshaft Position Sensor 2

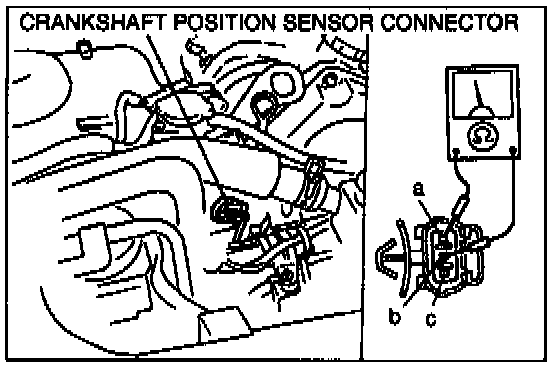

View: Crankshaft Position Sensor 2 Test Connections:

CRANKSHAFT POSITION SENSOR 2
1. Unplug sensor connector.
2. Measure resistance between terminals A and B. It should be 520 - 580 ohms @ 68°F (20°C).
3. If not as specified, replace sensor.
