A/C Cut-Off Control System

PURPOSE
A/C cut-off system is designed to improve idle smoothness just after starting, improve acceleration performance and prevent engine overheating.

View: A/C Cut-Off System:

OPERATION
The powertrain control module engine (PCME) controls this system according to inputs from several sensors. The PCME initiates A/C cut-off under specified driving conditions by de-energizing the A/C clutch relay.

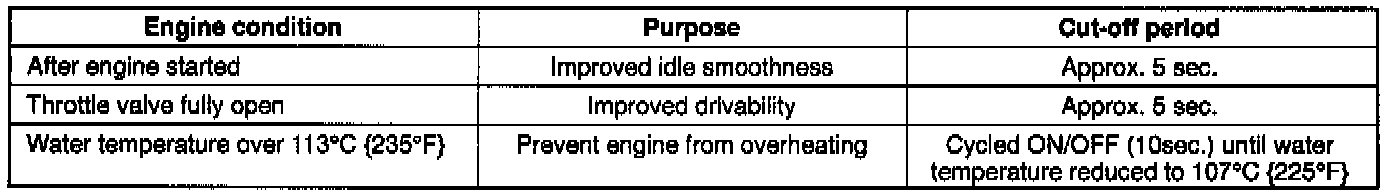

View: A/C Cut-Off System Operating Conditions:

A/C is cut under these conditions:
- For approximately 5 seconds after engine start
- For approximately 5 seconds when the throttle is fully open
- Coolant temperature over 113°C (235°F); cycles ON/OFF (10sec.) until coolant temperature falls to 107°C (225°F)
