Power Steering Pressure Switch: Testing and Inspection

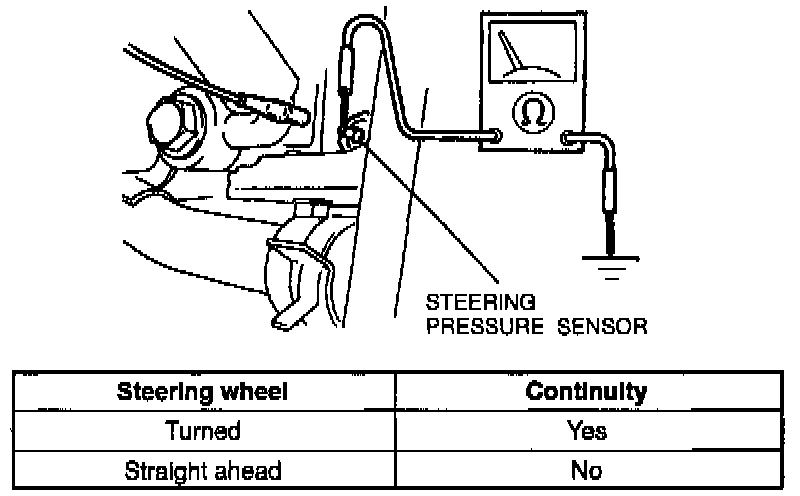

View: Testing The Steering Pressure Sensor:

1. Disconnect the steering pressure sensor connector.
2. Start engine and check for sensor continuity with an ohmmeter. While turning, sensor should show continuity. With wheel in straight ahead position (not being turned), there should be no continuity.
3. If not as specified, replace sensor.
