A/C Cut-Off Control Inspection

SYSTEM OPERATION
1. Turn the ignition switch to ON.
2. Turn the blower switch and air conditioning sensor (A/C switch) ON.

View: A/C Cut-Off System Operating Conditions:

3. Verify that the condenser fan and the A/C magnetic clutch operate according to the chart shown above.

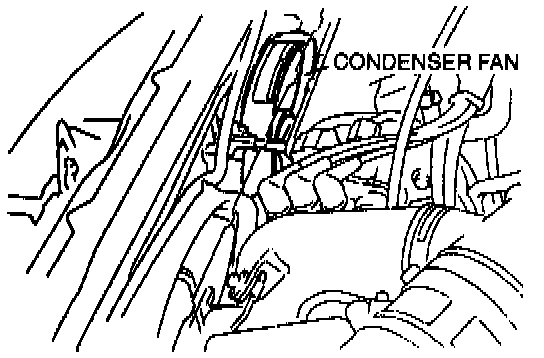

View: Condenser Fan:

NOTE: The magnetic clutch and the condenser fan operate together.
