Condenser Fan Control Test

SYSTEM INSPECTION

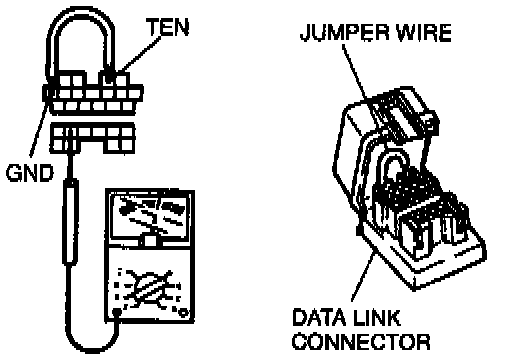

Use A Suitable Jumper Wire:

1. Connect the data link connector terminals TEN and GND with a jumper wire.
2. Turn the ignition switch ON.

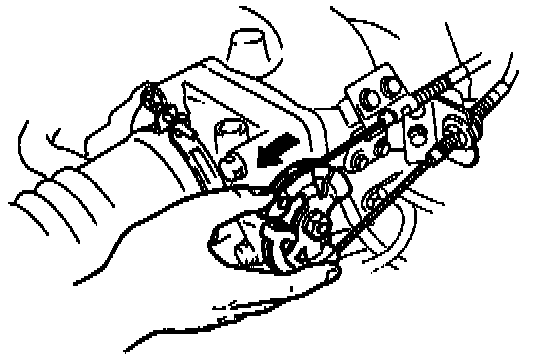

Rotate Throttle By Hand:

3. Rotate the throttle link by hand and verify that the coolant fan operates.


SYSTEM OVERVIEW

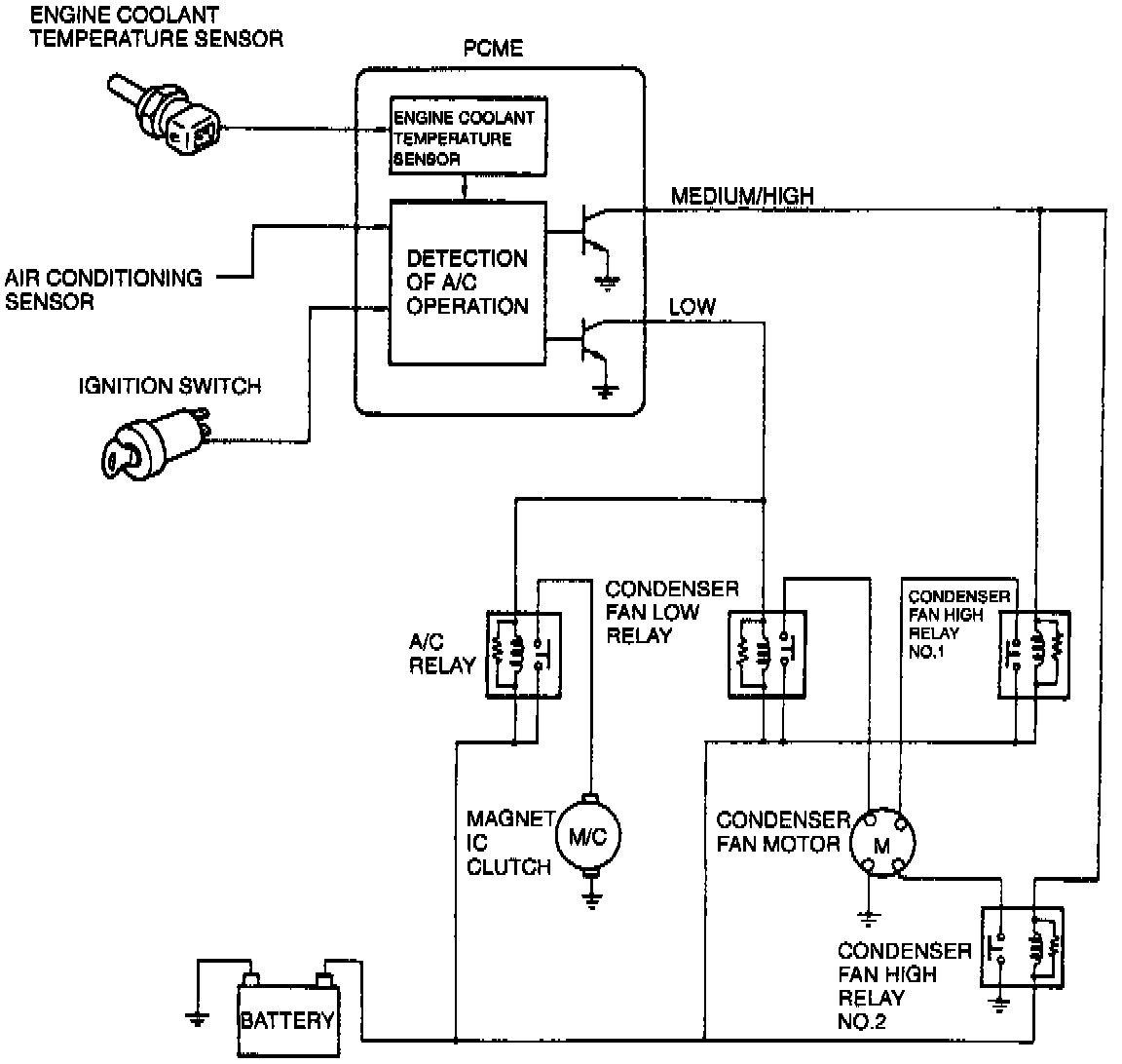

View: Condenser Fan Control System (A/C Equipped):

System/Component Relational Diagram

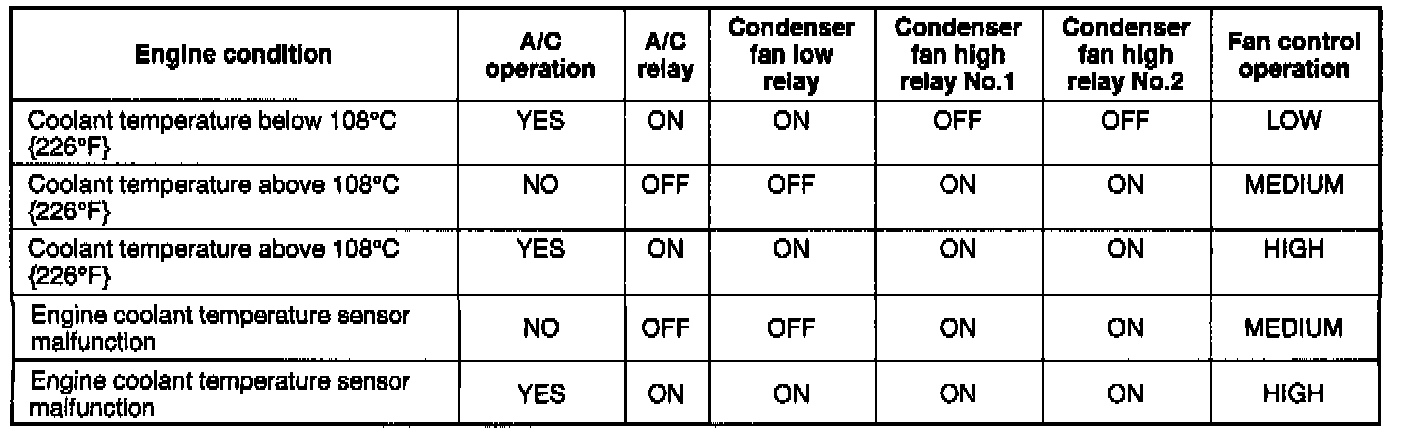

Fig.3 Condenser Fan Control System Operating Conditions:

System Operation Chart
