Home >> Mazda >> 1994 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Connector Views >> B2-01

B2-01

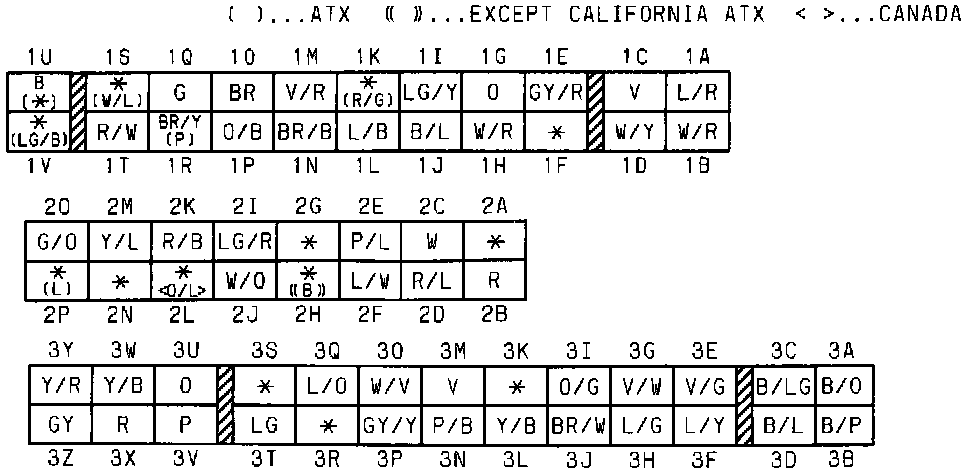

B2-01 PCME (EM):
