Ignition Coil: Testing and Inspection

Ignition Coil Testing:

SECONDARY COIL WINDING

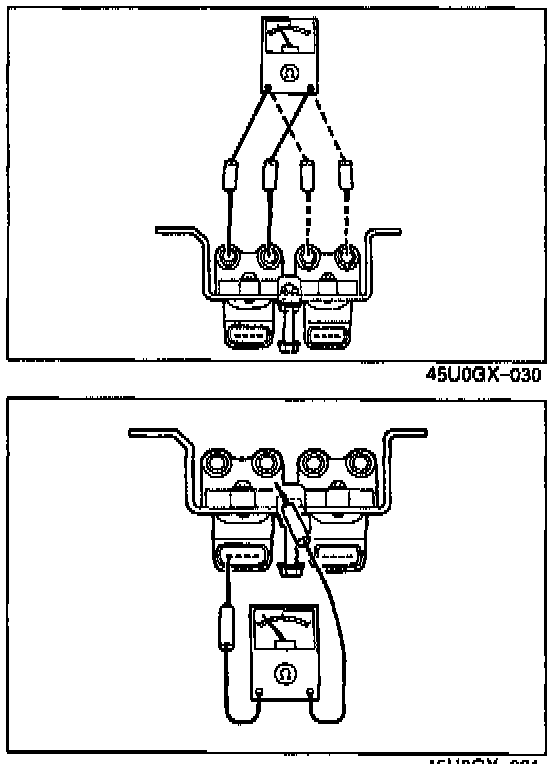

1. Remove high-tension leads.
2. Measure secondary winding resistance of each coil. It should be 8.7 - 12.9K ohms @ 68°F (20°C).
3. If not within specification, replace coil.

CASE INSULATION RESISTANCE

1. Remove high-tension leads and unplug connectors.
2. Use a 500V megger tester to measure insulation resistance between primary terminal and coil case. It should be above 10M ohms.
3. If not within specification, replace coil.
