Rear

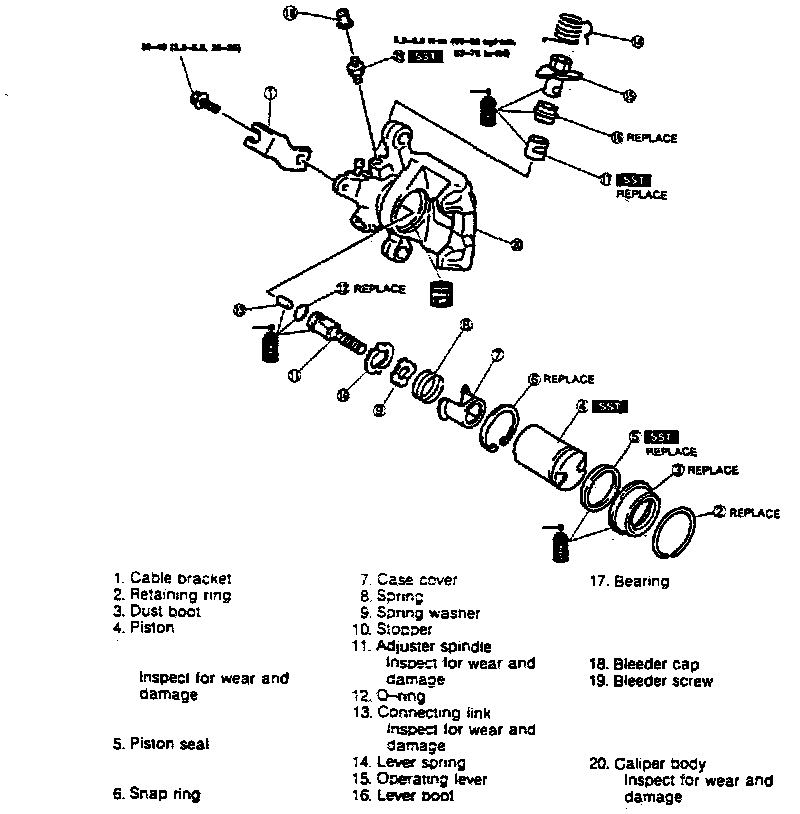

Fig. 10, Exploded View, Rear Disc Brake Caliper:

When overhauling caliper, refer to Fig. 10. When removing piston from caliper assembly, remove retainer and dust seal. Turn piston counterclockwise using piston holding tool No. 49FA18602 or equivalent and screw out piston from caliper assembly. Remove snap ring from caliper. Reverse numerical sequence in Fig. 10. for assembly.
