Fluid - A/T: Testing and Inspection

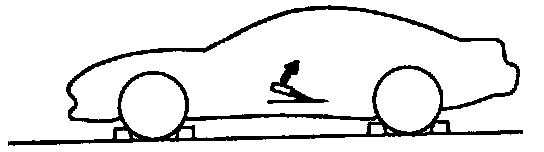

1. Park the vehicle on level ground.
2. Apply the parking brake and securely position wheel chocks to prevent the vehicle from rolling.
3. Warm up the engine until the ATF temperature reaches 60-70°C (140-158°F).

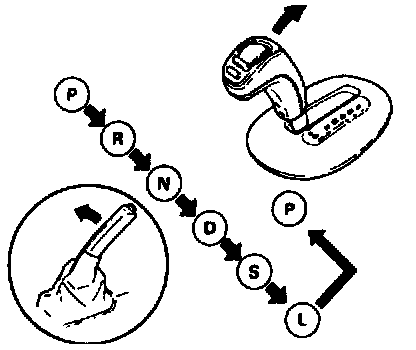

4. While depressing the brake pedal, shift the selector lever to each range (P-L). Leave it a few seconds in each range.
5. Shift back to P range.

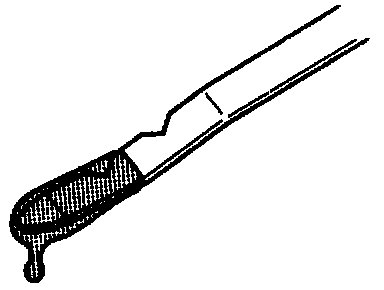

6. Ensure that the ATF level is between the notches of the ATF dipstick. Add ATF to specification, if necessary.

ATF Type: Dexron II or M-III
Capacity: 8.6 L (9.1 US qt, 7.6 Imp qt)

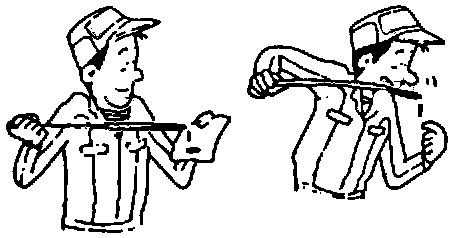

Condition
Determine whether the transmission should be disassembled by noting the following.
1. Is the ATF muddy or varnished?
2. Does the ATF smell strange or unusual?

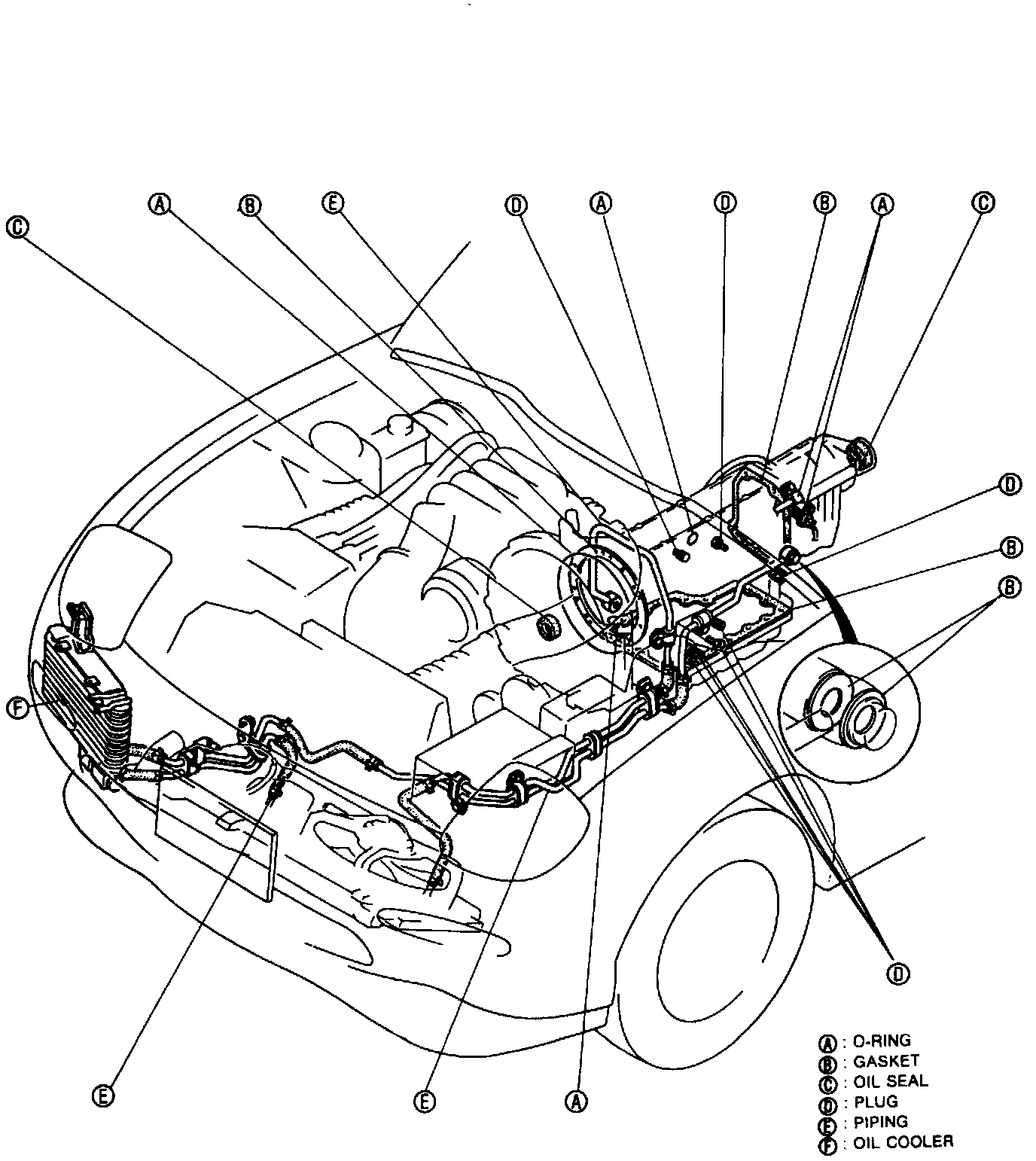

Fluid Leakage
Check for ATF leakage at the points shown below and repair or replace as necessary.
