Air Injection Pump: Service and Repair

Removal/Installation

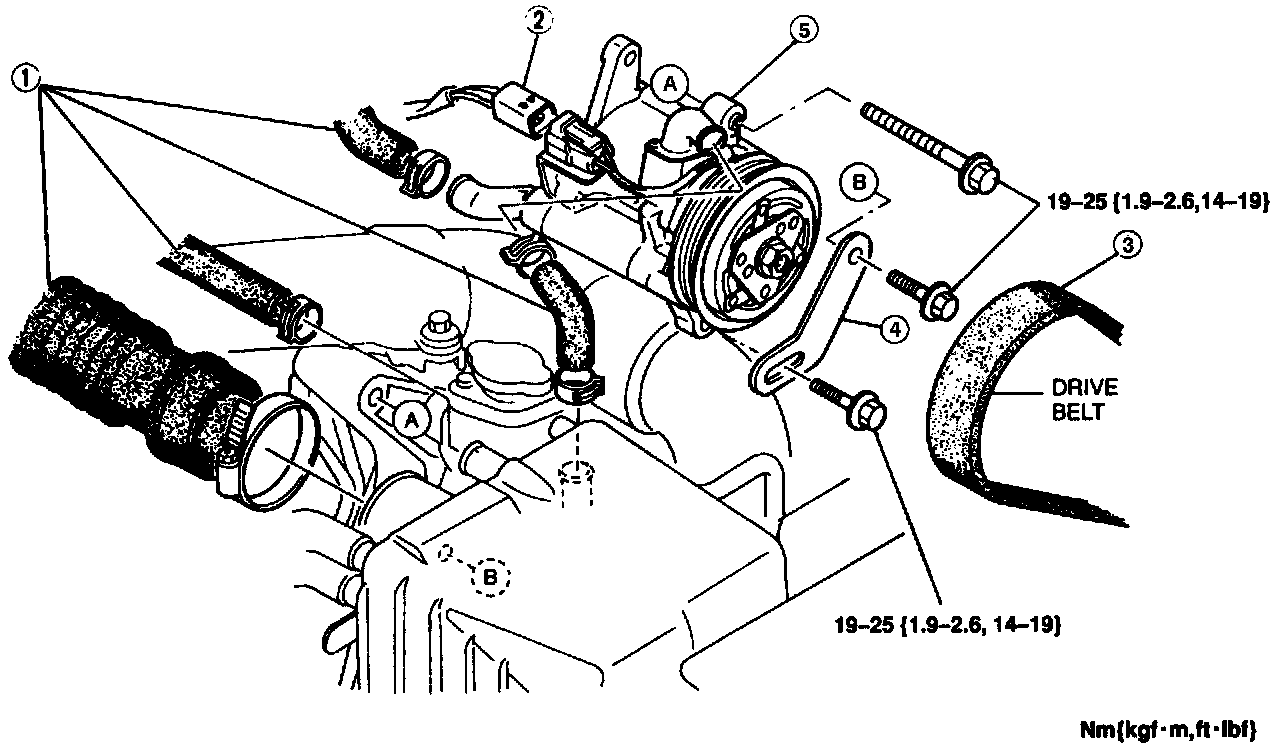

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.




1. Air hoses
2. Connector
3. Drive belt
4. Bracket
5. Air pump
