EGR Valve: Testing and Inspection

Inspection

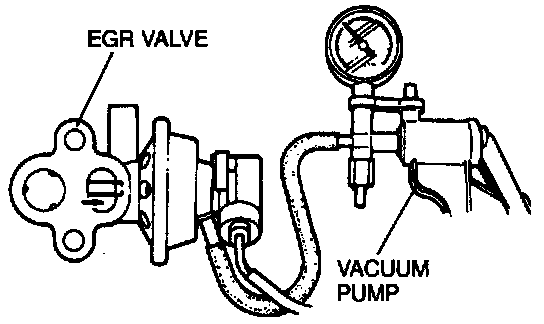

1. Connect a vacuum pump as shown and apply vacuum.
2. Verify that the EGR valve moves at more than the specified vacuum.

Specification: 85-115 mmHg (3.3-.5 inHg)

3. If not as specified, replace EGR valve.
