Control System Device and Relationship Chart
Control System Device and Relationship Chart

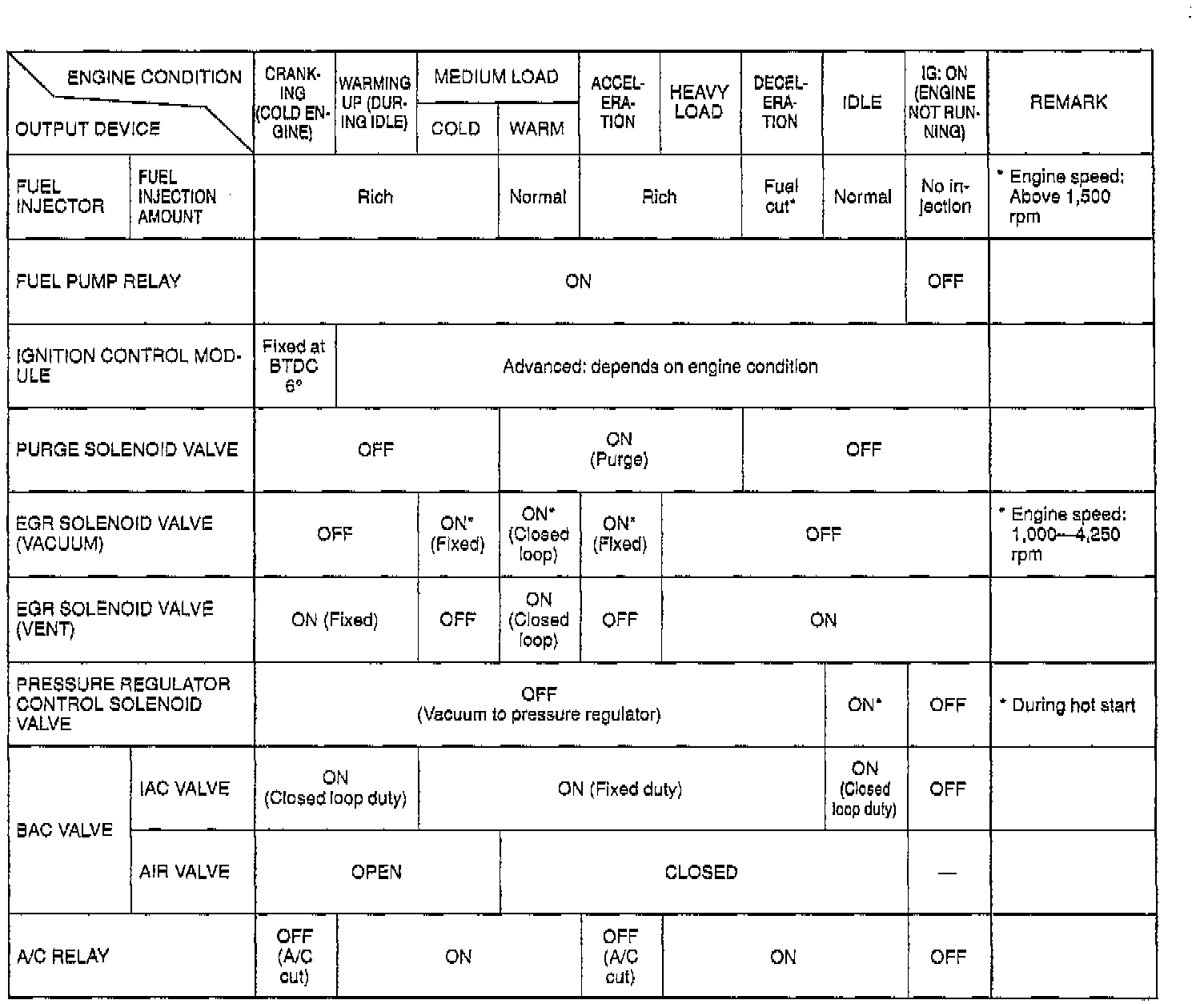

With Manual Transaxle (MTX) -- Output Devices And Engine Condition:
